Ambient Bliss
The RV-200 delivers inspiring reverbs and premium sound in the streamlined BOSS 200 series design. Twelve versatile reverb types-including the newly developed Arpverb-provide everything from subtle spatial color to complex, dreamy textures for ambient explorations. Quickly dial in sounds with the fast-access interface. Save favorites in 127 memories. And take performances to the next level with flexible onboard footswitches, deep external control support, and head-turning creative tools like Warp, Twist, and more.
Standard Features
Premium BOSS reverb processing in a streamlined pedal
Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
Twelve distinctive reverb types, including the newly developed Arpverb
Fast, easy operation with hands-on controls
127 user memories for storing sounds
Density control with six stages
Param knob to access extended functions within each reverb type
Selectable carryover for maintaining reverb trails when switching presets or bypassing the effect
Stereo I/O with wet/dry and dry mute output options
Two assignable footswitches
Expressive Hold, Warp, and Twist effects available via footswitch control
Deep external control support via footswitches, an expression pedal, and TRS MIDI I/O
Connect and control multiple 200 series pedals at once via MIDI
Panel lock function to avoid accidental sound changes
Powered via three AA batteries or optional AC adaptor
Studio-Grade Processing
The RV-200 features a powerful reverberation engine with class-leading sound quality, backed by custom BOSS DSP, 32-bit AD/DA, 32-bit floating point processing, and a 96 kHz sampling rate. Every algorithm offers true studio-grade performance, with exceptional detail and definition from the shortest early reflections to long, floating tails spanning multiple seconds.
Twelve Distinctive Reverbs
From essentials like Room and Hall to deeply immersive reverbs like Shimmer, Slowverb, and the cool new Arpverb, the RV-200 gives you the ambient colors you need for every song and style.
Instant Sound Creation
Like all 200 series pedals, the RV-200 offers a powerful yet intuitive panel that lets you realize great sounds with minimal effort. Along with core parameters such as reverb time, effect level, and pre-delay, there are variable high and low filters to perfectly balance the verb for your application. You also have a density control to adjust the weight of the sound, plus a parameter knob with access to multiple sound-shaping tools that are unique to each type.
Expressive Performance Control
The RV-200 includes memories for storing 127 reverb sounds, so your favorite setups are always ready to go. Two onboard footswitches pack a lot of performance versatility, with numerous options to reassign their targets to suit your needs. For example, you can bypass the effect, scroll through memories, and activate a Hold function to carry on the reverb effect for as long as the switch is pressed. It’s also possible to assign powerful performance effects such as Warp, Twist, and Fade.
Expanded Operation
Expanded control options let you integrate the RV-200 into any advanced rig. External control of many different parameter targets is possible via footswitches or an expression pedal, and MIDI I/O is provided on space-saving mini TRS jacks. Via MIDI, you’re able to chain multiple 200 series pedals and select memories on all of them at once. You can also control many assignable functions from external MIDI controllers and devices like the ES-8 and ES-5 effects switchers.
ormatted Specifications
Technical Details
Sampling Frequency: 96 kHz
AD/DA Conversion: 32 bits
Processing: 32-bit floating point
Reverb Modes (12 Modes):
ROOM, HALL, PLATE, SPRING, SHIMMER, ARPVERB, SLOWVERB, MODULATE, +DELAY, LO-FI, GATE, REVERSE
Memory:
127 slots + Manual
Input/Output Levels:
Nominal Input Level: INPUT A/MONO, B: -10 dBu
Maximum Input Level: INPUT A/MONO, B: +7 dBu
Input Impedance: INPUT A/MONO, B: 2 M ohms
Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
Maximum Output Level: OUTPUT A/MONO, B: +7 dBu
Output Impedance: OUTPUT A/MONO, B: 1 k ohm
Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
Bypass:
Buffered bypass

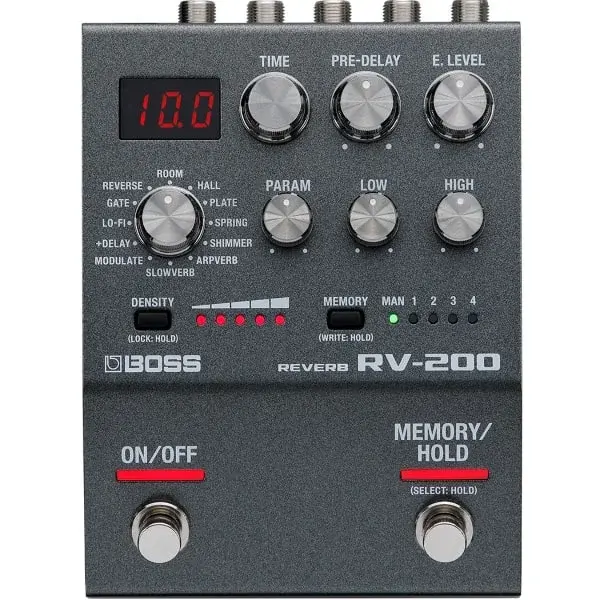

Controls:
ON/OFF switch, MEMORY/HOLD switch, MODE knob, TIME knob, PRE-DELAY knob, E. LEVEL knob, PARAM knob, LOW knob, HIGH knob, DENSITY button, MEMORY button
Display and Indicators:
Display: 7 segments, 3-character LED
Indicators: DENSITY and MEMORY (MAN, 1--4)

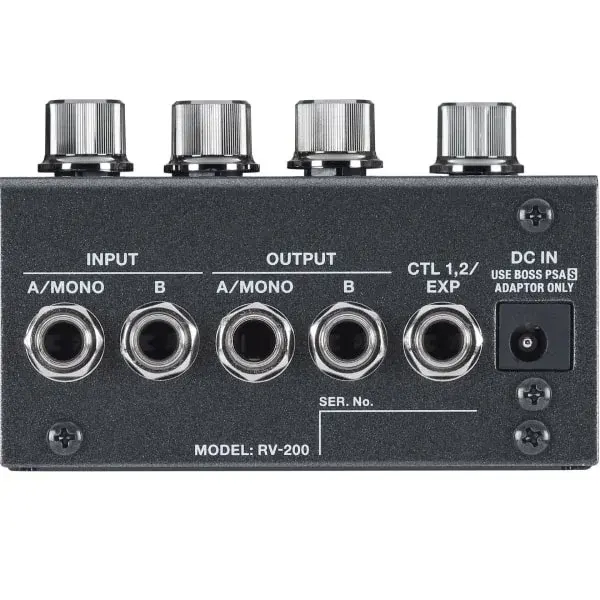

Connections:
Input Jacks: INPUT (A/MONO, B): 1/4-inch phone type
Output Jacks: OUTPUT (A/MONO, B): 1/4-inch phone type
Control Jack: CTL 1, 2/EXP: 1/4-inch TRS phone type

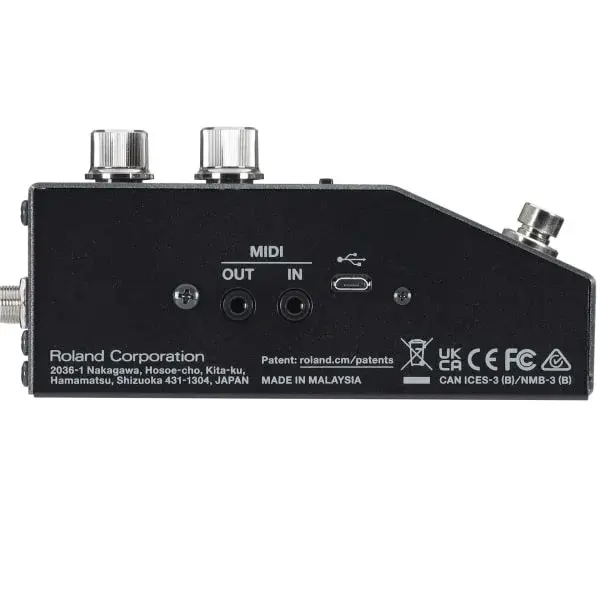

MIDI: IN, OUT jacks (stereo miniature phone type)
Power: DC IN jack
USB Port: USB2.0 micro B (for program updates only)
Power Supply:
Alkaline batteries (AA, LR6) x 3 or AC adaptor (sold separately)
Power Consumption:
260 mA
Battery Life:
Alkaline (continuous use): Approx. 4 hours (varies by usage)
Accessories Included:
"Using the Unit Safely" leaflet
"To Obtain the Owner’s Manual" leaflet
Alkaline batteries (AA, LR6) x 3
Rubber feet x 4
Optional Accessories (Sold Separately):
AC adaptor: PSA-S series
Footswitch: FS-5U, FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cables
Size & Weight:
Dimensions: 101 mm (W) x 138 mm (D) x 63 mm (H)
Height (with rubber feet): 65 mm
Weight: 610 g (without batteries), 680 g (with batteries)
