Sound Technology
Unprecedented Natural Reproduction of the Rich Expressive Power and Resonance of an Acoustic Piano
Multi-dimensional Morphing AiR Sound Source
The characteristics of CASIO’s newly developed Multi-dimensional Morphing AiR*Sound Source reflect thorough attention to detail in expressing the rich, resonating tones inherent to the piano. The capacity of the installed memory has been expanded to achieve a longer sampling duration and enhanced waveform data quality. The temporal changes in tone that create sound you would expect only from a piano, beginning with the initial sound and leading into a beautiful extension until the sound eventually vanishes, are reproduced naturally.
*AiR = Acoustic and Intelligent Resonator
Selection between 2 legendary grand piano sounds
The installed sounds of two world-renowned grand pianos are separately selectable, depending on the genre of the music being played and the performance environment.
Direct selection is enabled.
A superior instrument for powerful, richly reverberating performances. It reproduces classic grand piano sounds across the range from soft, delicate tones to strong, powerful tones, depending on the weight of the keystrokes.
GRAND PIANO 1 (graphic image)
This is the right choice for bright, luxuriant performances. It makes its presence felt with crisp, straightforward sound, even when being played in a band. Its tonality is ideally suited to jazz and pop music.
GRAND PIANO 2 (graphic image)
Keyboard System
Natural Playing Feel Approaching That of a Grand Piano Firm Touch That Converts the Player’s Thoughts into Sound
Tri-sensor Scaled Hammer Action Keyboard II, with a grand piano’s unique sounding timing
The difference between the sound structures of a grand piano and a digital piano appears as a difference in timing, from the moment the instrument is played until the sound is audible. The new Tri-sensor Scaled Hammer Action Keyboard II responds by incorporating a system with three sensors that detect touches of the keys sequentially.

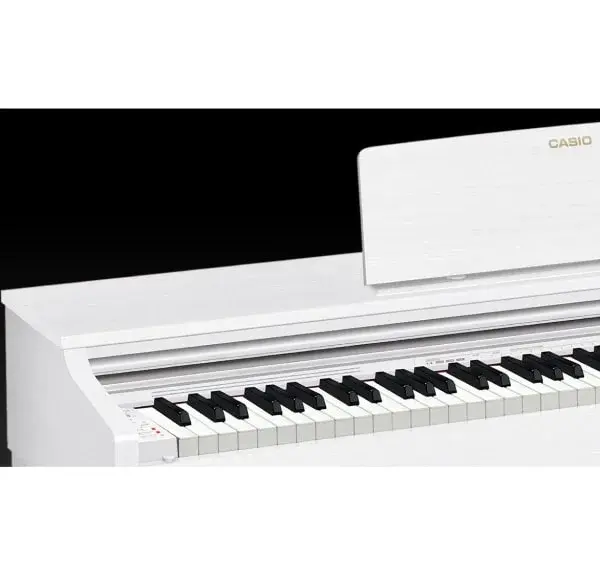

Simulated ebony and ivory keys with optimal fingertip fit for playing ease
The Simulated ebony and ivory keys offers the luxurious feel and texture as well as the smooth touch of a grand piano keyboard. The minutely detailed crimp surface finish inhibits finger slippage due to sweat and gives the sensation of a perfect fingertip fit, even when playing for extended periods.
An unprecedented evolution of the digital piano
Damper Resonance achieving a more naturally beautiful resonance than a pedal
The deep, beautiful resonance resulting from the use of a damper pedal is also reproduced naturally by a stereo resonance simulator installed on all 88 keys, an approach that differs from conventional simulated reproduction employing effect processing. The attention to detail goes so far as to simulate the resonance created by the lifting of the dampers themselves when the pedal is pressed.
Concert Play
High-quality audio data recordings of 10 live orchestra performances are installed. Pianists can play along with the recordings and enjoy the feeling of participating in a magnificent performance.
Versatile features
22 high-quality tones including stereo-sampled grand piano tones
Digital Effects: Reverb (4 types), Chorus (4 types), Brilliance, DSP (preset for some tones)
Connection to App ( Chordana Play for Piano Special Site )
Lesson feature using 60 Music Library songs plus 10 user loaded songs
Duet Mode enabling two people to play in the same range
MIDI Recorder: 2 tracks x 1 song, approximately 5,000 notes total

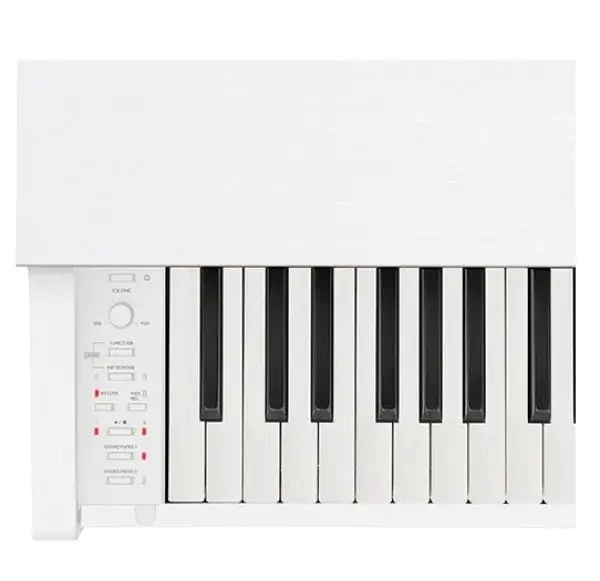

GRAND PIANO 1 button, GRAND PIANO 2 button
Slide-type keyboard cover
Auto Power Off
Specifications
Basic Information
Keyboard
Tri-sensor Scaled Hammer Action Keyboard Ⅱ (Key Surface Finish: Simulated ebony and ivory keys)
Number of Keys
88
Touch Response
3 sensitivity levels, off
Sound Source
Multi-dimensional Morphing AiR
Maximum Polyphony
192
Number of Tones
22
Built-in Songs
60
Demonstration Songs
Song Expansion (User Songs): 10 songs (max.) Up to approximately 90 KB / song
Lesson Function
Part on/off (Part Select: Right hand, Left hand)
Recorder
[MIDI Recorder] 2 tracks, 1 song Approximately 5,000 notes total Real-time recording
Pedal
3 built-in pedals (damper, soft, sostenuto) Half-Damper Pedal Operation: Yes
Speaker
12 cm x 2, 2-Speaker
Amplifiers
8 W + 8 W
Power Supply
[AC Adaptor] AD-E12150LW (DC 12V)
Power Consumption
18W
Dimensions
1,417 x 432 x 821 mm (w/o music stand)
Weight
36.6 kg
Color
white
