dBTechnologies presents two new point-source models within the acclaimed OPERA series, raising the bar and bringing a real revolution at a perfect time, 50 years from the foundation of the company. Introducing the all-new standard in professional portable sound, made in Italy: OPERA REEVO.
The OPERA REEVO 210 and OPERA REEVO 212 are compact, powerful sound systems designed for anyone seeking high-quality audio anywhere. These speakers deliver impressive sound pressure levels with professional-grade sound clarity and an exceptional low-end extension, all within a newly designed, compact enclosure.
The Quasi 3-way configuration provides robust yet clear sound, setting a new standard in its category and marking an evolution in the long-running and highly-regarded dBTechnologies active speaker series. Inspired by the company's touring series, the OPERA REEVO models are engineered to translate complex musical material with impeccable clarity, particularly in the midrange frequencies, where separation and definition are crucial.

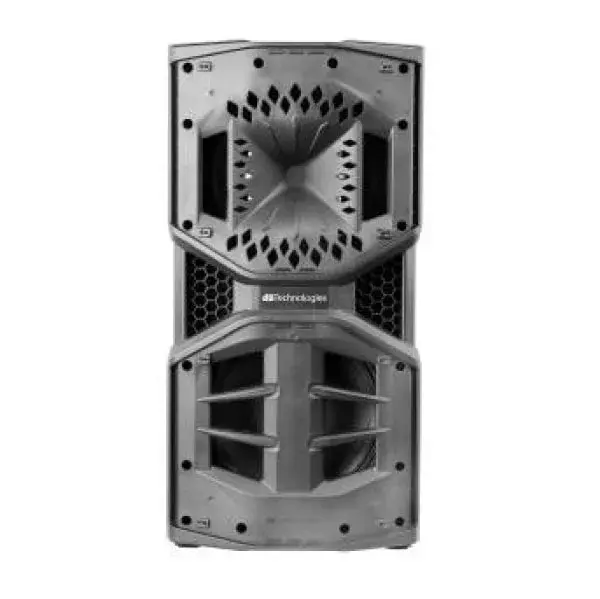

The coaxial acoustic design features a front-integrated high-frequency (HF) horn with diamond-shaped cutouts to eliminate comb filtering, enhancing high-frequency reproduction and improving the upper woofer's efficiency. A secondary phase plug boosts the lower woofer's performance, enhancing transient response and overall sound quality. Low-noise reflex ports, integrated into the front molding, utilize a honeycomb structure to reduce wind turbulence caused by high airflow, ensuring a clean and powerful sound output.
Both OPERA REEVO models are powered by a Class-D Digipro G2 amplifier that delivers 1050 W RMS and 2100 W peak power. The advanced DSP processing, including FIR linear phase filters, enables consistent audio performance with uniform, crystal-clear sound. Additionally, the OPERA REEVO speakers offer factory-tailored voicing presets to adapt to various scenarios, such as use as a wedge stage monitor or a standalone full-range PA system.

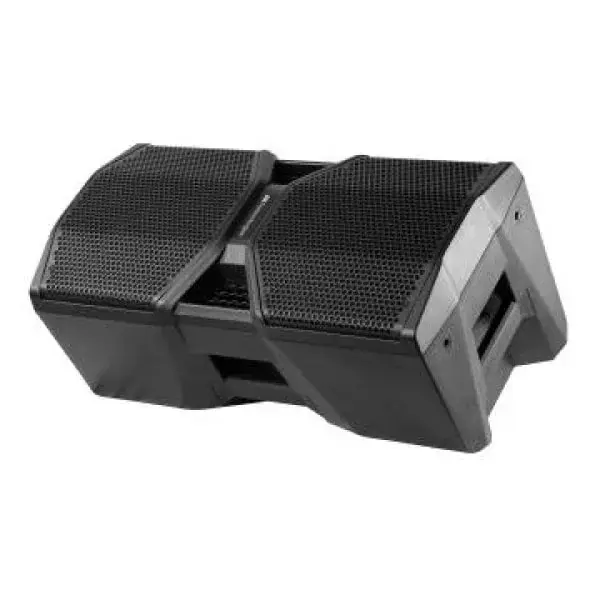

The speakers’ versatile sound processing is complemented by a user-friendly design. The OPERA REEVO can be deployed as a stage monitor, on a speaker stand, or paired with a subwoofer using a 36mm pole. It can also be suspended using integrated M10 threaded eyebolts, making it ideal for permanent installations.
Despite their compact size, both cabinets offer high output levels-132.5 dB for the REEVO 210 and 133 dB for the REEVO 212. They feature two Neodymium woofers (10” for the REEVO 210 and 12” for the REEVO 212) and a 1.75” coaxial compression driver, maintaining low weight at 17.2 kg (37 lbs) for the REEVO 210 and 20.4 kg (44 lbs) for the REEVO 212.
The OPERA REEVO series also provides excellent vocal clarity, crucial for environments like corporate events or houses of worship, where speech intelligibility is vital. With a wide nominal dispersion-100°x80° for the REEVO 212 and 100°x90° for the REEVO 210-the speakers ensure consistent coverage from all listening positions.
Technical Data: OPERA REEVO Series
Speaker Type : Quasi 3-Way Active Speaker
Acoustical Data:
Frequency Response :
[-10dB]: 54 - 19,400 Hz
[-6dB]: 60 - 19,100 Hz
Max SPL : 132.5 dB
HF (High Frequency Driver) : 1" Exit CD, 1.75" voice coil (v.c.)
Type HF : Compression Driver
Horizontal Directivity : 100°
Vertical Directivity : 90°
Horn : Asymmetrical Horn
LF (Low Frequency Driver) : 2x 10" Neodymium, 2.5" voice coil
Amplifier:
Amp Technology : Digipro G2 with Switch Mode Power Supply (SMPS)
Amp Class : Class D
RMS Power : 1050 W (525W + 525W)
Peak Power : 2100 W (1050W + 1050W)
Processor:
Controller : DSP 28/56 bit
AD/DA Converter : 24 bit/48 kHz
Crossover Frequency : 1260 Hz
Limiter : Peak, RMS, Thermal
Advanced DSP Functions : Linear Phase FIR Filters
Input:
Signal Input : 1x Combo (XLR/Jack 6.3 mm) Line
Signal Output : 1x XLR Male (True link)
Controls : Gain (rotary), Preset (Flat, Playback, Wedge)
Mechanics:
Housing : Polypropylene
Grille : Full grille
Handles : 1 on left side, 1 on top
Rigging Points : 2x M10 on top, 1x M10 on back

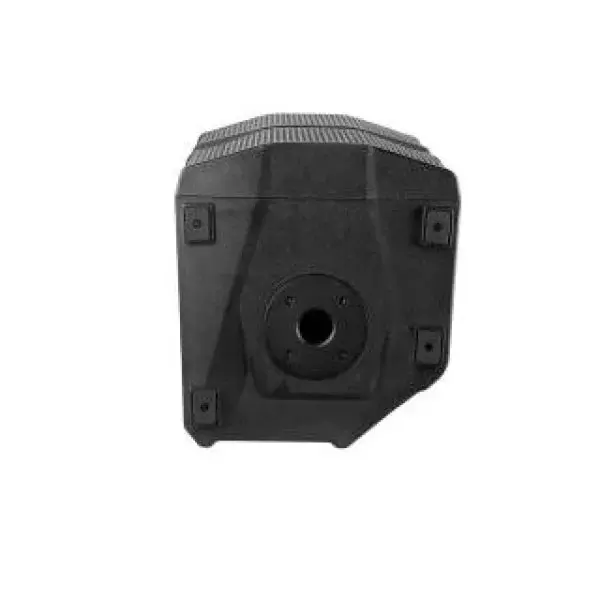

Pole Mount : D36 mm
Dimensions:
Width : 300 mm (11.81 in)
Height : 604 mm (23.78 in)
Depth : 324 mm (12.76 in)
Weight : 17.2 kg (37 lbs)
