Intuitive mixer with 16 input channels (12 Mic/Line + 4 Mic/Stereo-Line)
2 High-Quality editable effects, 100 factory and 20 user presets
Professional 4x4 24-bit / 96 kHz USB interface with MIDI
11 band stereo graphic equalizer
Optional robust cover-lid with integrated handle

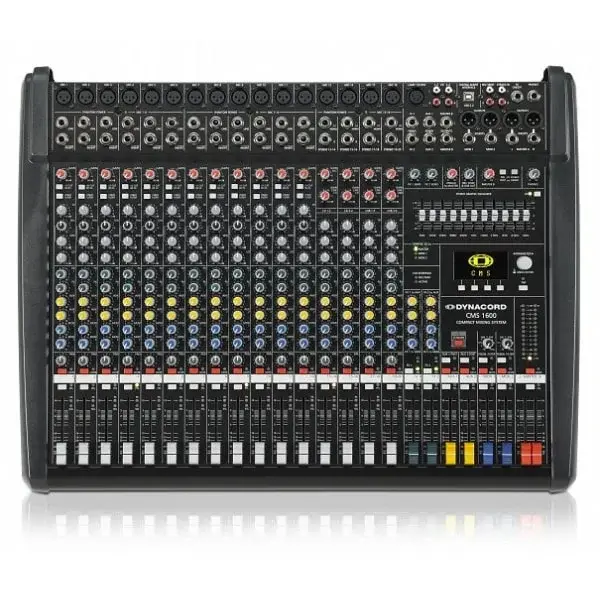

Compact Mixing System Overview
The Compact Mixing System from Dynacord has seized pole position in this segment of the market by virtue of the quality of its sound, components, and features. By integrating a high-quality mixer, two digital effects processors of studio grade, a graphic equalizer, and a professional digital interface to PC or Mac, the CMS mixers represent the ideal solution for a large number of demanding applications in the audio sector.
Key Features:
Low-Noise Microphone Preamps: The mixing section starts with 16 lowest noise , discrete microphone preamps.
Flexible Monitoring: 6 auxiliary busses , two of them switchable pre/post fader, allow high flexibility for monitoring.
Effects Processors: The two effects processors offer 100 factory presets , including the already legendary PowerMate reverbs. A TAP key allows precise setting of delay times. Furthermore, each preset can be edited and stored in 20 user memories .
USB Audio Interface: The built-in uncompromising USB audio interface shares 4 playback and 4 recording channels simultaneously with a PC or Mac, following studio standard 24-bit / 96 kHz .
MIDI Integration: An additional MIDI interface allows integration of instruments, such as keyboards. A license for Steinberg's Cubase software is part of the package.
Graphic Equalizer: The 11-band stereo graphic equalizer can be routed flexibly to master or monitor channels.
Lighting Option: For dark environments, an optional gooseneck light can be connected.
Dust Protection: All faders are dust protected, and the balanced XLR outputs for master and monitor underline the professional approach.
Robust Cover: An optional very robust cover lid with an integrated handle is available, offering optimal protection for the device as well as greater carrying comfort without the need for a large, heavy flight case.
Specifications
Channels (Mono + Stereo): 12 + 4
Auxiliary Buses (MON, FX, AUX): 2 Pre, 2 Post, 2 Pre/Post switchable
MIC GAIN (Mono / Stereo): 0 to +60 dB / +10 to +60 dB
