Overview of the Mixer
The mixer features an intuitive section with 8 input channels, including 4 Mic/Line inputs, 2 Mic/Stereo-Line inputs, and 2 Stereo-Line inputs. It comes equipped with two high-quality FX processors that are editable, offering 100 factory presets and 20 user presets. The professional 4x4 USB interface operates at 24-bit/96 kHz, along with recording software and a MIDI interface for FX control.
Key Features:
Stereo EQ: Available for the main mix.
First-Class Components: Includes ALPS faders and potentiometers.
Large OLED Display: Rich in contrast for easy visibility.
Lightweight Design: Weighing only 5.8 kg, it's a super compact package.
The MIC/LINE Channels
The mixer section offers a total of 8 channel strips:
4 MIC/LINE Channels: Feature low-noise, electronically balanced XLR microphone inputs with a very low distortion factor (typ. 0.002%), designed for connecting low-impedance microphones. Phantom power (+48 volts) is centrally switchable for condenser microphones.
2 MIC/Stereo USB Channels (Super Channels): Designed for USB stereo inserts, 1-2 and 3-4.
2 Stereo LINE Channels: Equipped with electronically balanced TRS inputs for connecting electronic instruments like keyboards, drum machines, and other high-level stereo signal sources. Additional RCA inputs (CD 1-2 and CD 3-4) allow for connecting CD or MP3 players.
Each input channel features a Signal/Peak LED for level control, with additional features such as a MUTE button and a PFL button in stereo channels 5-12.
The DIGITAL AUDIO Interface
The DIGITAL AUDIO INTERFACE includes two stereo channels (USB 1-2 and USB 3-4) in Super Channels 5-6 and 7-8, respectively. It operates at 24-bit resolution with sampling rates up to 96 kHz, meeting studio requirements. The USB sends provide Master L and R, AUX, and MON signals, and allow for simultaneous input and output.
PC MIDI Interface
The CMS features a fully-functional PC MIDI interface that supports remote switching of the internal effects units using a master keyboard or MIDI footswitch.
Master Section
The Master Section includes:
Master A L+R Sends: Controlled with separate faders.
Master B Send: Switchable pre/post Master A and mono/stereo.
Stereo Effects Returns: For managing effects within the mix.
9-Band Stereo Equalizer: Adjusts frequency response according to the room acoustics.
Stereo Effects and Processing
The CMS is equipped with two high-quality, 24-bit stereo effects processors (FX 1 and FX 2), which operate independently. Each effects section features 100 presets, including reverb, delay, and modulation effects. Custom effects can be created by modifying preset parameters and storing them in 20 user memories.
The effects units are fed by the FX Send bus, and the AUX send bus can be configured to send to FX 2. The large OLED display provides clear visibility for managing effects and processing menus, making the operation intuitive and user-friendly.
This mixer offers a comprehensive solution for both professional audio applications and versatile music production needs.

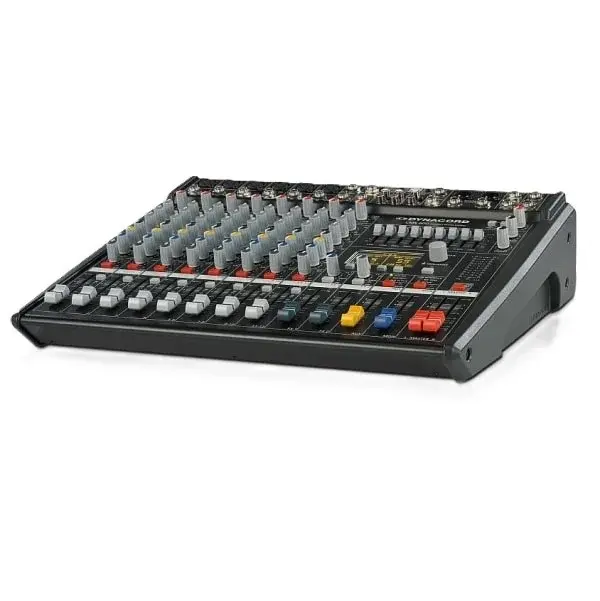

Overview of the CMS 600-3 Mixer
Thanks to its impressive feature set and versatility, the CMS 600-3 mixer is the ideal choice for all professional applications requiring a limited number of channels without compromising on audio quality. Its lightweight and compact design eliminates transport issues, making it an excellent solution for various fixed installation applications.
Performance Without Compromise: The CMS 600-3 stands out as the pro audio mixer among mixers, delivering unique capabilities for demanding audio environments.
Specifications
Channels: 4 + 2 + 2
MIC/Line-Mono Channels: 4
MIC/Line-Mono / USB-Stereo (Super Channel): 2
Line L-R / CD-IN-Stereo Channels: 2
The CMS 600-3 mixer combines functionality and quality, making it a top choice for professionals in the audio industry.
