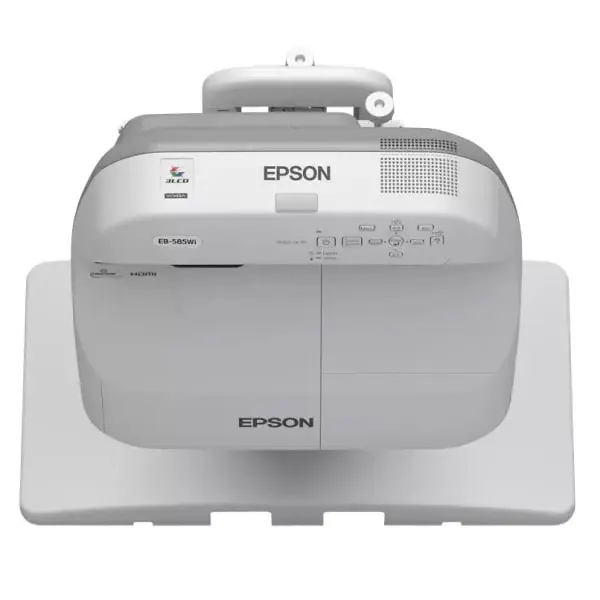

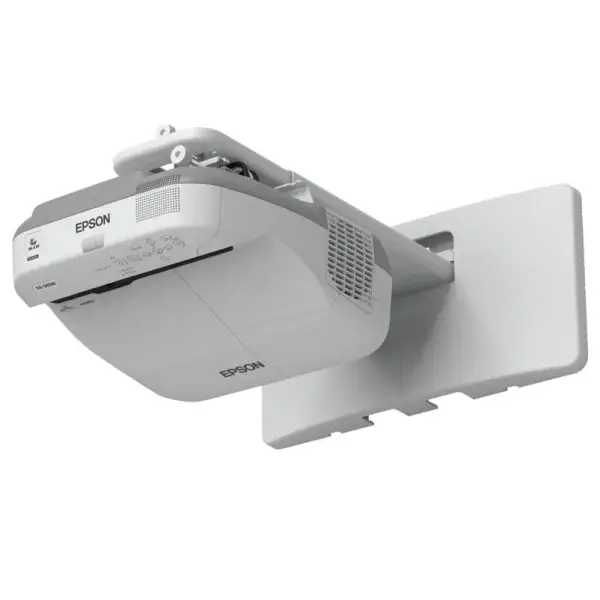

Interactive projector
Quality image Epson’s 3LCD technology ensures high-quality images
Dual pen interactivity Epson's interactive pens are now even more responsive and easy to use
Reliable Improved reliability and a longer lamp life
Save time Simply plug in and turn on - there's no warm-up time
Wireless projector Optional wireless allows content to be shown from a range of devices
Quality image
Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than leading competitive projectors 1 . WXGA resolution and HDMI input mean that students benefit from sharp, clear projected images.
Dual pen interactivity
Epson's interactive pens are now even more responsive and easy to use, with an improved design. Dual pen capability allows for simultaneous, collaborative learning with different pen attributes. The 'hover' function accurately detects the position of the pen when it's not in contact with the projection surface.
Reliable
Project for longer with improved reliability and a longer lamp life of up to 6,000 hours.
Save time
Simply plug in and turn on - there's no warm-up time and the PC-free annotation mode means that teachers don't even need to power up their computers. The interactive function does not require drivers to be installed and it auto-calibrates.
Wireless projector
Optional wireless capability allows you to show content easily from a range of smart devices using the iProjection App 2 .
More control and collaboration
Multi-PC projection software allows teachers and students to share their content simultaneously. The moderator function allows teachers to remain in complete control since they can choose what content to display.
What is in the box?
CD Manual
Interactive pens
Main unit
Pen case
Power cable
Remote control incl. batteries
SMART Notebook software entitlement booklet
USB cable
Wall hanging bracket
The product features and specifications are subject to change without prior notice
Technology
Projection System : 3LCD Technology
LCD Panel : 0.59 inch with MLA (D8)
Color Light Output : 3,300 Lumen (Normal) / 1,900 Lumen (Economy)
White Light Output : 3,300 Lumen (Normal) / 1,900 Lumen (Economy) (In accordance with ISO 21118:2012)
Resolution : WXGA
Resolution Enhancement : HD Ready
Aspect Ratio : 16:10
Contrast Ratio : 10,000:1
Lamp : 245 W, Durability: 4,000 hours (Normal) / 6,000 hours (Economy Mode)
Keystone Correction : Manual Vertical ± 3°, Manual Horizontal ± 3°
Colour Video Processing : 10 Bits
2D Vertical Refresh Rate : 50 Hz - 85 Hz
Optical
Throw Ratio : 0.27:1
Zoom : Digital, Factor: 1 - 1.35
Lens : Optical
Screen Size : 60 inches - 100 inches
Projection Distance : Wide: 0.4 m (60-inch screen), Tele: 0.6 m (100-inch screen)
Projection Lens :
F Number : 1.8
Focal Length : 3.71 mm
Focus : Manual
Offset : 6:1
Connectivity
USB Display Function : 3-in-1 (Image / Mouse / Sound)

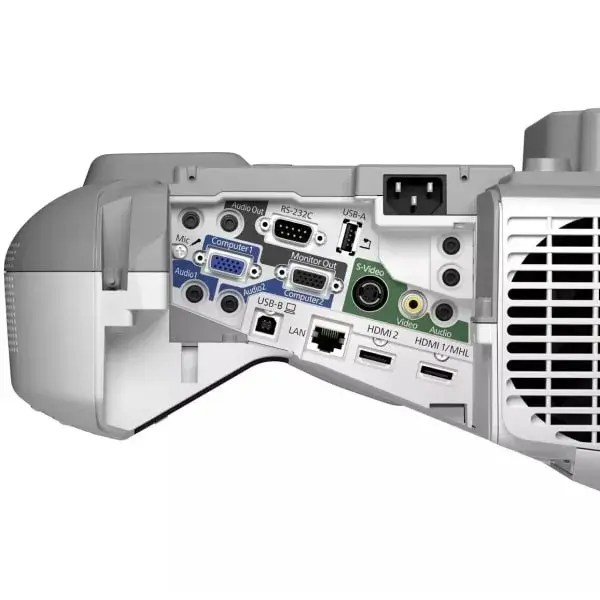

Interfaces :
USB 2.0, USB 2.0-A
HDMI In (2x), VGA In (2x), VGA Out
Jack Plug In (3x), Jack Plug Out
Microphone Input
RS-232C, S-Video In
Ethernet Interface (100 Base-TX / 10 Base-T)
Wireless LAN IEEE 802.11b/g/n (Optional)
MHL, Sync In, Sync Out
Epson iProjection App : Ad-Hoc / Infrastructure
Advanced Features
Security : Kensington Lock, Security Bar, Wireless LAN Security, Password Protection
Other Features :
Auto Calibration
Auto Brightness Adjustment
Automatic Input Selection
Built-in Speaker (16 W)
Customizable User Logo
Digital Zoom
Direct Power On/Off
Document Camera Compatibility
Driverless Installation
Dual Pen Support
Easy OSD Pre-Setting
Interactive, PC-Free Annotation
Video Color Modes
Blackboard, Dynamic, Presentation, Sports, sRGB, Theatre, Whiteboard
General
Power Consumption :
Normal Peak Mode: 358 W
Eco Peak Mode: 270 W
Standby (Energy Saving): 0.33 W
Supply Voltage : AC 220 V - 240 V, 50 Hz - 60 Hz
Dimensions (WxDxH) : 367 x 375 x 155 mm
Weight : 5.5 kg
Noise Level :
Normal: 35 dB (A)
Economy: 28 dB (A)
Supported Temperature :
Operation: 5°C - 35°C
Storage: -10°C - 60°C
Supported Humidity :
Operation: 20% - 80%
Storage: 10% - 90%
Note : Installations in environments with heavy oil smoke, chemicals, or bubbles may degrade certain parts over time. Contact support for more details if needed.
Included Software
Easy Interactive Tools, EasyMP Monitor, EasyMP Multi PC Projection, EasyMP Network Projection
Options
Connection and Control Box, Document Camera, Interactive Pen Extension, Quick Wireless USB Key, Replacement Pen Tips, USB Extension Cable, Wireless LAN Unit
Compatibility
Operating Systems : Linux, Mac OS X, Windows 7, Windows 8
Warranty
Projector : 24 months Carry-in
Lamp : 12 months or 1,000 hours (whichever comes first)
