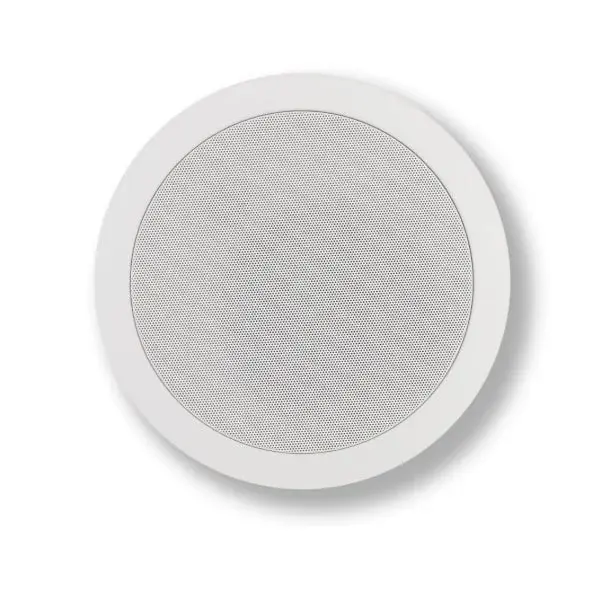

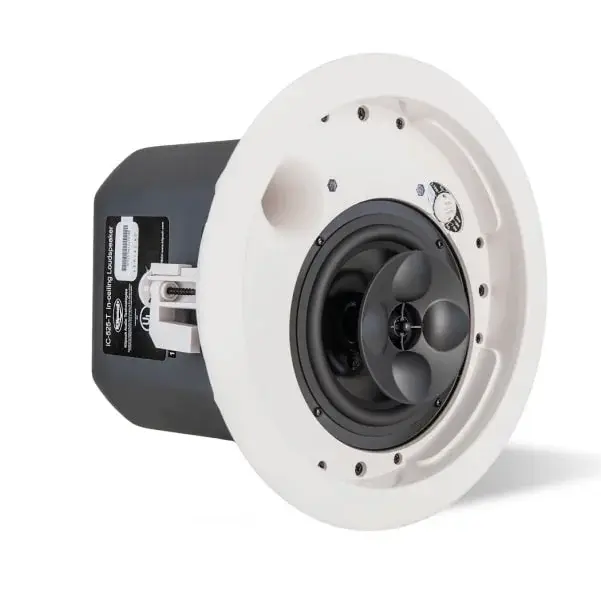

Klipsch IC-525-T WHITE FG

Many of the world's most recognized brands including Ron Jon Surf Shop and Bloomingdale's use our commercial speakers to create unique memorable experiences for their customers. Do the same for your business with our intermediate IC-525-T 70-volt speaker. Compact design simplifies low-ceiling mounting Deep bass with less compression Horn-loaded for clear sound in any location Multi-tap transformer for distributed audio Includes tile bridge for installation in any ceiling Pairs well with our CA surface mount speakers Works with Klipsch KPH-525 Pendant Housing for high/no suspended ceiling installs Easy to install and adjust settings • Wider, shorter design to fit low ceilings; multi-tap transformer • 70-volt, 100-volt, or 8-ohm operation selectable via front baffle switch • Tractrix Port design for deep bass with less compression • Wide dispersion Tractrix® Horn tweeter with XT technology for clear sound in any location • Designed to mix and match with Klipsch CA-T speakers It features: 5.25-inch woofer Titanium diaphragm compression driver mounted on a 3.5-inch round modified XT Tractrix® Horn for smooth response and consistent directivity. Tractrix port design for enhanced bass performance with reduced compression and distortion. Compact design for easier mounting in low-ceiling environments. The IC-525-T also supports distributed line applications , with a 70/100 volt multi-tap transformer . A single rotary switch, located under the speaker grille, enables easy switching between 8-ohm bypass and multi-tap settings. It comes with a tile bridge for mounting in suspended ceilings, providing additional reinforcement when needed. This speaker has been used in prominent national installations such as Bloomingdale's in New York City and the Ron Jon Surf Shop in Orlando , underscoring its reliability and performance. IC-525-T Specifications: Frequency Response: 65-20k Hz +/- 4 dB Power Handling: 65 watts (16.5V) continuous Q Factor: 4.5 Sensitivity: 89dB 2.83V/1M Nominal Impedance: 8 ohms, minimum 4.2 ohms when switch is set to the 8-ohm position Transformer Taps: 70V: 30W, 15W, 7.5W, 3.8W 100V: 30W, 15W, 7.5W Maximum Acoustic Output: 104 dB @ 1 meter Coverage Angle: 105 degrees Directivity Index: 6.5 dB Transducers: 5.25” woofer and 1” titanium diaphragm compression driver on a 3.5” round XT modified Tractrix Horn Enclosure Tuning: Vented via a Tractrix port Input Connections: Terminal Strip Thru Hole Width: 9” diameter Overall Width: 10.75” diameter Overall Depth: 8.313” Mounting Depth: 8” Cutout Dimensions: 9.125” diameter Weight: 8.25 lbs. Finishes Available: Black and White
