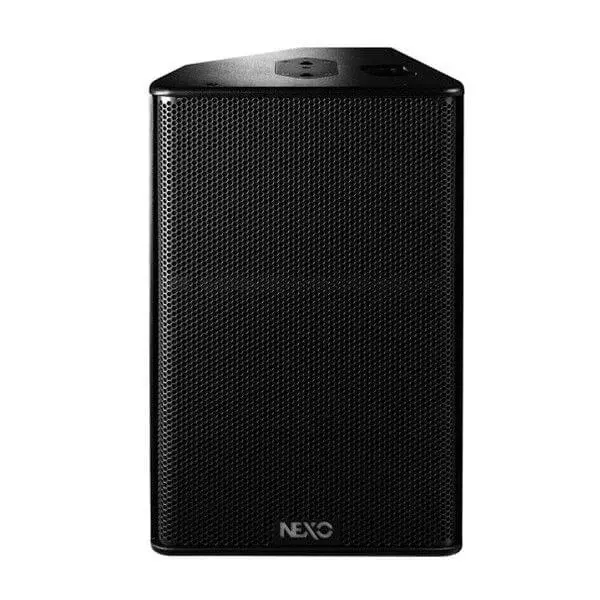

Nexo PS.15UR – 15-Inch High-Power Loudspeaker from the PS Range

PS15-R2A high power system capable of producing 136dB Peak SPL, the new PS15-R2 Loudspeaker can be safely driven with up to 2000 Watts of amplifier power. Controlled by the new DTD Controller, the PS15-R2 achieves high SPLs and wide bandwidth performance, despite being only half the weight and volume of common trapezoidal loudspeaker systems.KEY FEATURES High-power system (136dB Peak SPL @ 1m) with 15in LF and 2in HF drivers Rotatable asymmetrical horn and unique cabinet architecture ensure versatility; user- adaptable for both PA and stage monitoring applications Two-way, switchable passive or active design for precise performance-matching to user requirements Sophisticated control electronics ensure reliable, linear operation Supported with a full range of mounting and flying accessoriesSPECIFICATIONSFrequency Response [a]50 Hz - 18 kHz ±3 dBUsable Range @-6dB [a]47 Hz - 18 kHzSensitivity 1W @ 1m [b]102dB SPL Nominal, 99dB SPL WidebandHeight x Width x Depth675mm x 434mm x 368 mmNominal Peak SPL @ 1m [b]133 to 136 dB PeakHF Dispersion [c]50° to 100° Hor. x 55° Vert.Rotatable Horn4 positionsDirectivity Q & DI [c]Q : 16 Nominal DI : 12dB Nominal ( f > 1.5 kHz )Crossover Frequencies1.1 kHz Passive or Active (internally switchable)Nominal ImpedancePassive : 8Ω or Active : LF: 8Ω & HF: 16ΩActive Mode only available on NXAMPRecommended AmplifiersPassive: 1000 to 2000 W / 8ΩActive: (LF) 1000-2000W/8Ω (HF) 250-500W/16ΩFEATURESComponentsLF 1 x 15” (38 cm) long excursion Neodymium 8Ω driverHF 1 x 2” throat, 3” Titanium diaphragm, driver + LowDistortion, Constant Directivity Asymmetrical Dispersion HornHeight x Width x Depth675mm x 434mm x 368 mm(26.57” x 17.08” x 14.48”)Weight28 kg (62 lbs.)Speakon Connectors2 x NL4MP Speakon 4 pole (switch passive to active insideConstructionBaltic Birch Ply finished with textured black coatingFittingsHandles 4 Metal recessed pocketsFront finishMoulded dark grey metal grillFlying PointsTwo plate connecting with external accessoriesStand fittingsBuilt in Steel Stand Fitting, (35mm 1 3/8”)
