Unica represents the next-generation amplifier platform designed to deliver unmatched performance and flexibility. It combines high-quality amplification with advanced DSP capabilities, providing users with exceptional sound reproduction and control.
Unica enables audio professionals to optimize sound quality and elevate the overall audio experience by leveraging its state-of-the-art technology and intuitive user interface.
Sound Quality
Thanks to the proprietary 3rd generation architecture, Unica achieves an unparalleled signal-to-noise ratio, promising pristine audio quality in every situation.
Consistency
Experience reliable amplification across various power options and functionalities, simplifying setup and management for a consistent user experience .
Efficiency
The third-generation output section and power supply reduce power consumption with less power lost as wasted heat, and the completely redesigned heatsink improves thermal dissipation .
Integration
Unica simplifies integration with a third-party communication protocol , ensuring effortless control and monitoring via leading system processors like Q-SYS, Symetrix, and Crestron.
Unlock the Power of Consistency
Its compact size, energy efficiency, and extensive connectivity options make it a versatile solution that effectively addresses the most demanding installation requirements.

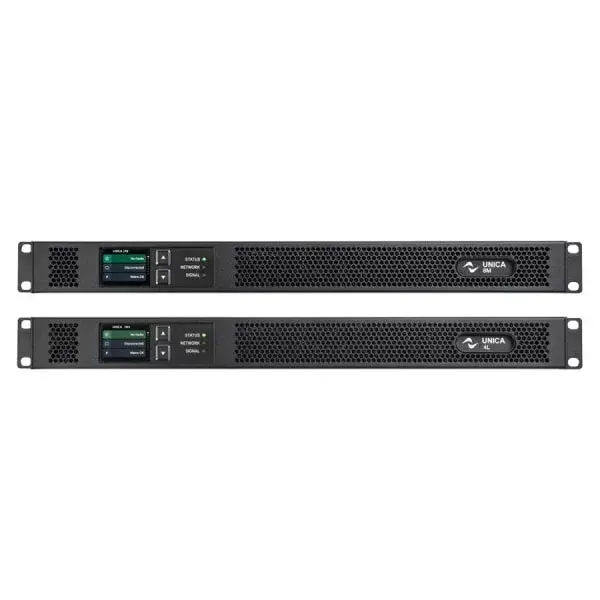

Featuring four 4-channel models and four 8-channel models , Unica provides a comprehensive and consistent lineup , all packed into a compact 1RU form factor .
Unica 4L
Model
Power per channel
Total Power
5K4
4x 1250 W
5000 W
9K4
4x 2250 W
9000 W
12K4
4x 3000 W
12000 W
16K4
4x 4000 W
16000 W
Unica 8M
Model
Power per channel
Total Power
1K8
8x 125 W
1000 W
2K8
8x 250 W
2000 W
4K8
8x 500 W
4000 W
8K8
8x 1000 W
8000 W
Features
Powersoft 3rd Generation Amplification Technology State-of-the-art processing and amplification architecture ensure maximum audio performance and reliability, allowing for advanced processing, networking, and monitoring capabilities to meet audio systems’ growing needs and complexity.
Networking Three configurable 1Gb ports allow daisy-chain and Dante-redundant network topologies, via two operating modes: Switched and Split-Redundant. The Split-Redundant mode allows one port dedicated to control and two ports for Dante/AES67, allowing network traffic separation. A dedicated network-security webpage allows advanced configuration to meet stringent network-security requirements.
PoE Input The PoE input keeps network ports and amplifier logic powered in case of mains loss, ensuring a short wake-up time when power is restored. Unica also allows monitoring of the loudspeakers and amplifier output circuitry without mains, when powered by PoE++.
Power Sharing Each output can deliver up to twice the rated power when asymmetrically loaded, ensuring high versatility in system design and phase specification. Additionally, each output can drive both 70/100V and low-impedance loudspeakers down to two ohms seamlessly, without configuring the output mode. Output channels can be bridged and feature extensive loudspeaker diagnostic tools.
Front Panel Display Access to the amplifier’s status and general information is granted via the front panel LCD display, which is useful for troubleshooting, monitoring, and maintenance purposes.
ArmoníaPlus Software All models include network connectivity and onboard processing. It is possible to adjust each amplifier parameter, load speaker presets, and tune complex systems easily thanks to Powersoft ArmoníaPlus software.
Eco Mode Automatic energy-saving functionality allows turning off each output channel independently when audio is not passing, minimizing energy consumption. Channels are individually and instantaneously turned on as soon as a signal is detected, without impacting audio performance.
Easy Swap The game-changing functionality allows replacing an amplifier quickly, without product-specific knowledge, and independent of system size and complexity. This is possible thanks to Unica’s ability to store backups on a local USB flash memory drive and restore the backup to a replacement amplifier by simply inserting the USB drive and following the procedure on the front-panel display.
MyUniverso Cloud Cloud-native connectivity allows remote monitoring of the amplifier status from any device, anywhere in the world, via Powersoft’s Cloud Platform MyUniverso.
Maritime Compliance Unica is certified for use in naval applications when used with a specially designed maritime kit. The rigorous testing Unica underwent to earn the IEC60945 and IACS-E10 certifications is a testament to the build quality and reliability of this versatile platform.
Dolby Atmos Connect Streamlined device integration with Dolby Atmos Connect Patching allows users to input basic information from Dolby processors, seamlessly managed by ArmoníaPlus. This enables direct amplifier setup without external devices or software.
Dynamic Music Distribution Support Unica seamlessly integrates DMD features, workflow, and performance across the entire platform.
