RCF 12135082 AM 1125 Mixer Amplifier

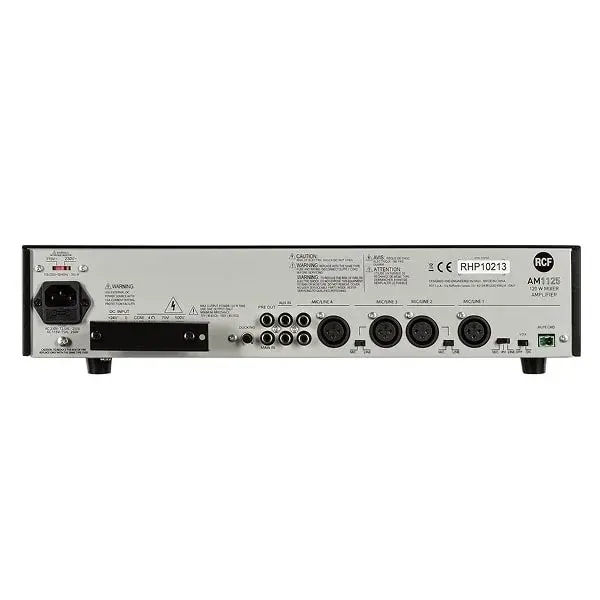

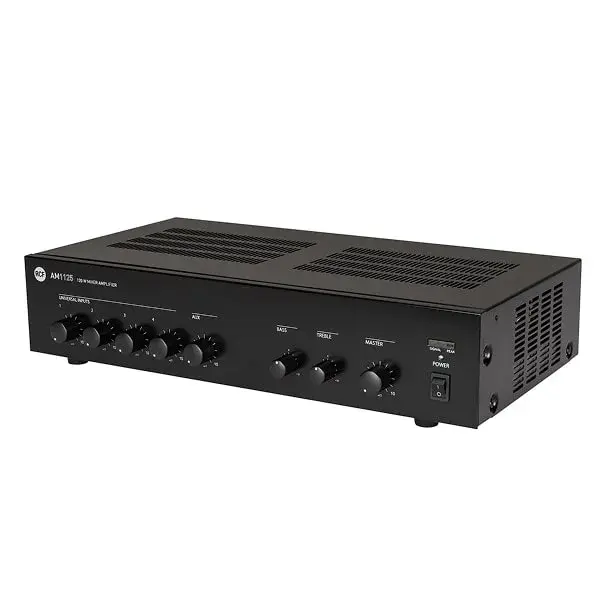

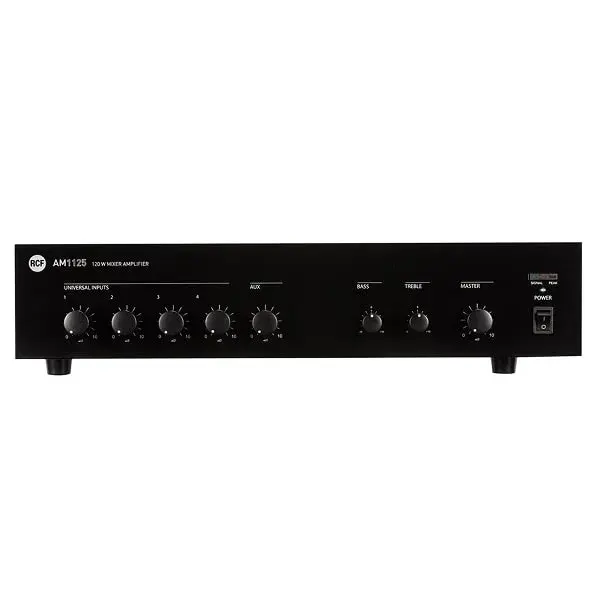

AM 1125 120 W MIXER AMPLIFIER 160 W power amplifier 4 mic-line inputs and 1 AUX IN VOX facility and phantom power supply on INPUT 1 Low and high impedance spekers output Features 160 W power amplifier 4 mic-line inputs and 1 AUX IN VOX facility and phantom power supply on INPUT 1 Low and high impedance spekers output Dual RCA connectors for INPUT 4 and AUX IN Ducking control on AUX IN level AUX output on RCA connector Common tone controls on front panel 24 V dc power supply (batteries) AM 1125 is a 120W mixer-amplifier with 5 audio inputs. Audio input 1 has phantom power supply and get the priority over the other audio inputs through an external command or automatically thanks to the VOX circuit. Dual RCA connectors can be used to link stereo (unbalanced) sound sources (e.g. CD, MP3 players, tuners, etc.). The amplifier output is available both for low impedance loudspeakers (min. 4 Ohm) or 70/100 V constant voltage lines (for loudspeakers with 70/100 V line transformers). It can also be powered by batteries (24 V dc voltage), in order to ensure its proper operation even when the mains supply is unavailable. the amplifier specification : Specification Details Output Power 1 x 120 W @ 4 ohm Output Power @ 100 V 1 x 120 W @ 100 V Frequency Response (-3dB) 60 Hz ÷ 15000 Hz SNR Analog Inputs (“A” weighted) >85 dB Crosstalk <85 dB Distortion (THD+N) @ 1 kHz nominal power <1.5 % Input Section Total Number of Inputs 5 Line Inputs 1 Line Connectors RCA Mic+Line Inputs 4 Mic+Line Connectors RCA, XLR Mic+Line Phantom 18 V DC VOX Yes Paging Connectors XLR General Purpose Inputs (GPI) 1 Output Section Signal Output Number 1 Signal Output Connectors RCA Power Output Connectors Euroblock Processing Tone Controls Configuration and Control Front Panel Protections Cooling Convection Short Circuit Protection Yes Thermal Protection Yes DC Protection Yes Fuses Yes Power Requirement Operating Voltage 220-240/115 V~ 50/60Hz Voltage Selection External DC Power Yes DC Power Value 24 V Power Consumption (MAX) 350 W Standard Compliance CE compliant Physical Specifications Cabinet/Case Material Metal Color Black Rack Mounting 19", 2U Size / Weight Height 88 mm / 3.46 inches Width 431 mm / 16.97 inches Depth 385 mm / 15.16 inches Weight 7.3 kg / 16.09 lbs Shipping Information Package Height 165 mm / 6.5 inches Package Width 500 mm / 19.69 inches Package Depth 380 mm / 14.96 inches Package Weight 8.5 kg / 18.74 lbs
