RCF MQ 100L THREE-WAY COLUMN LOUDSPEAKER - Black

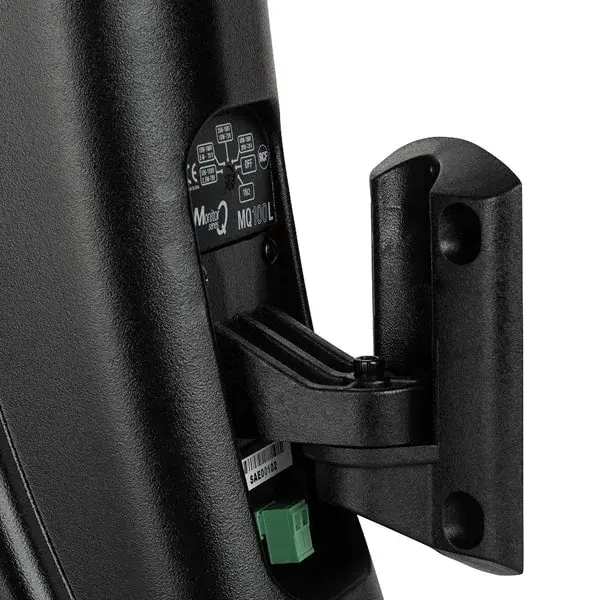

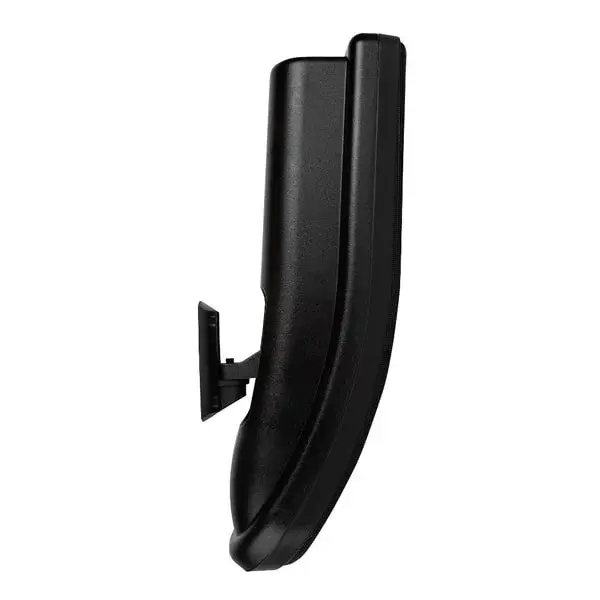

Features 2 x 3.5" woofer, 2 x 3.5 midrange and 2 x 0.75 dome tweeter Power selectable (100 V): 40 W - 20 W - 10 W - 5 W 93 dB sensitivity Colour white RAL 9016 and black RAL 9005 Plastic body, steel grille MQ 100L (available in black and white) is a 3 way column loudspeaker providing natural hi-fi delity sound of both speech and music, suitable for sound system having fixed loudspeakers where the environment is acoustically critical or with architectural constraints. The wide horizontal coverage angle (180°) and the vertical dispersion (60°) allow the correct sound reproduction in a wide space, in order to limit feedback and improve the sound directivity which is important, for instance, in halls having a long reverberation time. The mounting accessories are included. These have been engineered to keep the column as close as possible to the wall and simplify the installation. Its tilt angle can be chosen among 0° - 5° - 10°. The 60° vertical dispersion is asymmetric: it is the difference between 20° upwards and 40° downwards. The vertical dispersion axis is in fact already angled 10° downwards, making it unnecessary to tilt the sound column excessively. Acoustical specifications Frequency Response (-10dB): 130 Hz ÷ 20000 Hz Max SPL @ 1m: 112 dB Horizontal coverage angle: 180° Vertical coverage angle: 60° System Sensitivity: 93 dB Power section Amplification: Full Range Nominal Impedance: 16 ohm Power Handling: 80 W Peak Power Handling: 320 W PEAK Protections: PTC on tweeter Crossover Frequencies: 2000 Hz Recommended Amplifiers: UP 2321, UP 2162 Transducers Dome Tweeter: 2 x 0.75'' Midrange: 2 x 3.5'' Woofer: 2 x 3.5'' Input/Output section Input connectors: Euroblock Output connectors: Euroblock Constant Voltage Transformer: 100 V Power selection 1: 40 W - 250 ohm Power selection 2: 20 W - 500 ohm Power selection 3: 10 W - 1000 ohm Power selection 4: 5 W - 2000 ohm Physical specifications Cabinet/Case Material: Plastic Hardware: Wall mount bracket Grille: Steel Color: White - RAL 9016, Black - RAL 9005 Size / Weight Height: 500 mm / 19.69 inches Width: 120 mm / 4.72 inches Depth: 167 mm / 6.57 inches Weight: 2.73 kg / 6.02 lbs
