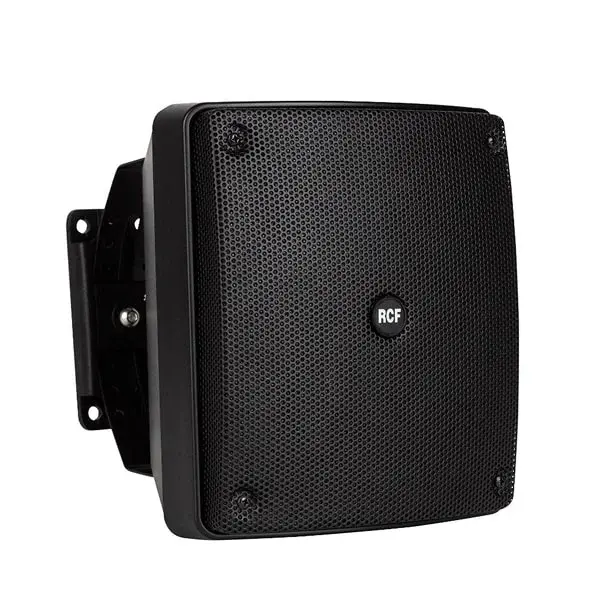

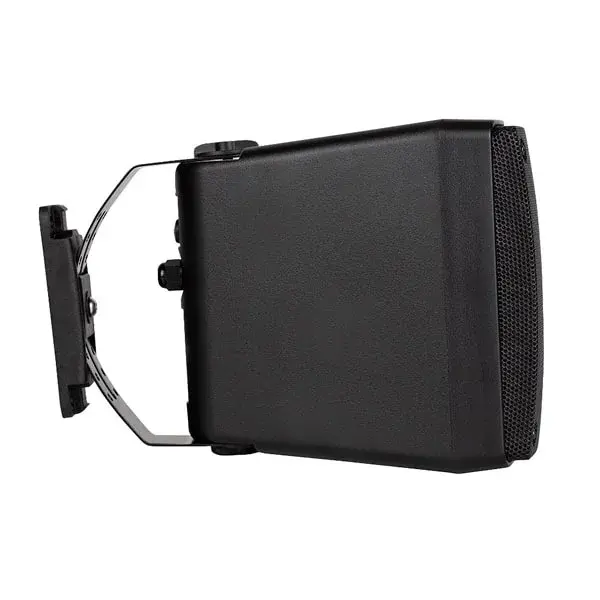

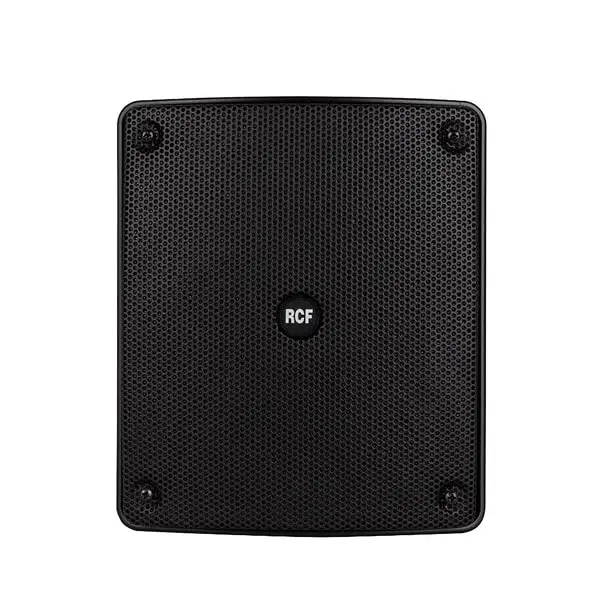

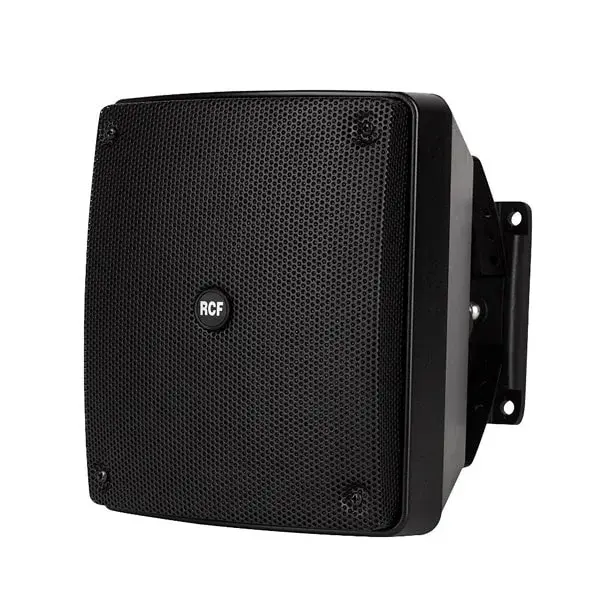

RCF MQ 80P TWO-WAY INDOOR OUTDOOR SPEAKER - Black

Features 5" woofer with 1" compression driver Power selectable (100 V): 30 W - 10 W - 10 W - 5 W 94 dB sensitivity Colour white RAL 9016 and black RAL 7021 Plastic body, steel grille Protection grade IP 55 High intelligibility, high efficiency and compact design make the RCF MQ80P 2-way horn-loaded sound projector speaker system the ideal solution to get clear voice and music reproduction in mid-size environment. Suitable for PA systems and background/foreground music systems. Thanks to its 90° X 60°constant directivity and to simple accessories it can be combined in clusters of 2 or more pieces to get wide and smooth coverage and to reduce the installation points. It is suitable for both indoor and outdoor installations (IP 55). The woofer is a high-excursion, PP coated paper cone - rubber surround design mounted in a tuned enclosure (port can be sealed for full outdoor installation). The tweeter is a horn-loaded compression driver with phase plug, the only way to get real and crispy intelligible voice reproduction even in wide and noisy environments. Installation of the MQ80P is quick thanks to the unique bracket with several fixing points and aiming facilities.Connections are made by a multi-pole cable. Wattage taps and voltage adjustments together with 8-ohm operation are selectable by means of a Rotary switch, accessible under a sealed cover. The enclosure is constructed of high density UV resistant self-extinguishing polystyrene with robust steel grill. Specifications Frequency Response (-10dB) 100 Hz ÷ 20000 Hz Max SPL @ 1m 114 dB Horizontal coverage angle 90° Vertical coverage angle 60° System Sensitivity 94 dB Amplification Full Range Nominal Impedance 8 ohm Power Handling 60 W Peak Power Handling 240 W PEAK Crossover Frequencies 3000 Hz Recommended Amplifiers UP 2321, UP 2162 Compression Driver 1 x 1.0'' Woofer 1 x 5.0'' Input connectors Cable Output connectors Cable Constant Voltage Transformer 100 V Power selection 1 30 W - 333 ohm Power selection 2 20 W - 500 ohm Power selection 3 10 W - 1000 ohm Power selection 4 5 W - 2000 ohm Cabinet/Case Material Plastic Hardware Wall mount bracket Grille Steel Color White - RAL 9016, Black - RAL 7021 Height 223 mm / 8.78 inches Width 191 mm / 7.52 inches Depth 236 mm / 9.29 inches Weight 3.65 kg / 8.05 lbs
