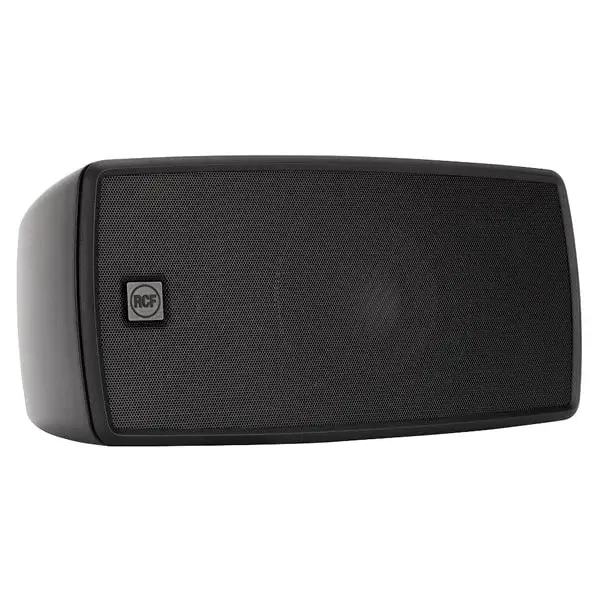

RCF WMR 60T TWO-WAY WALL-MOUNT MONITOR SPEAKER

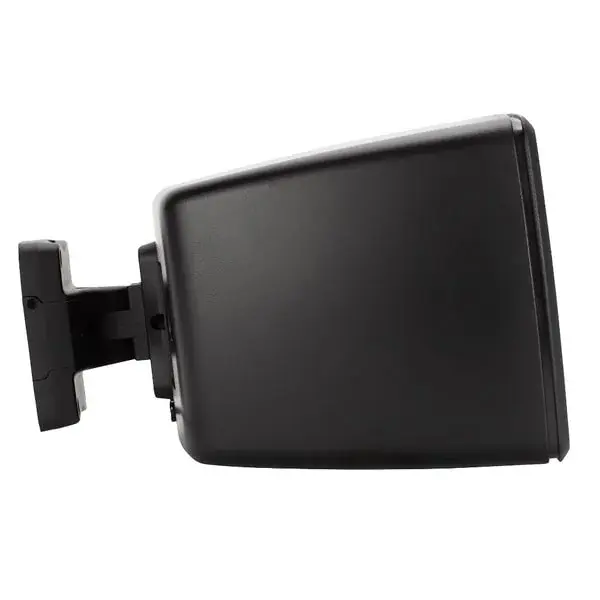

Features 80W RMS power handling 114 dB max SPL 70 ÷ 20000 Hz frequency range 140° x 100° constant directivity coverage angle 6.5" high power woofer 1" neodymium dome tweeter Self-extinguishing plastic cabinet and aluminum front grille Connection board integrated into the wall support 4 pole EUROBLOCK connector (audio input and parallel link output) IP55 protection grade WMR 60T is a multi-purpose two-way wall-mounted speaker, suitable for a wide range of applications. Thanks to its elegant and discreet design and accurate details, WMR 60T pairs any building's aesthetic. The high-quality transducers guarantee a precise music reproduction of the entire frequency band and provide impressive sound pressure levels for such a compact enclosure. The installation is easy thanks to the dedicated connection board inside the (included) wall mount support, which allows the installer to set the desired tilt first, fix the speaker, and finally connect it without the need for any tooling. Acoustical specifications Frequency Response (-10dB): 70 Hz ÷ 20000 Hz Max SPL @ 1m: 114 dB Horizontal coverage angle: 140° Vertical coverage angle: 100° System Sensitivity: 89 dB Power section Amplification: Full Range Nominal Impedance: 8 ohm Power Handling: 80 W RMS Peak Power Handling: 320 W PEAK Protections: Bulb lamp Crossover Frequencies: 2500 Recommended Amplifiers: DMA 504, DMA 162, DMA 82, DMA 162P Input/Output section Input connectors: Euroblock Output connectors: Euroblock Constant Voltage Transformer: 70/100 V Power selection 1: 80 W - 125 ohm Power selection 2: 40 W - 250 ohm Power selection 3: 20 W - 500 ohm Power selection 4: 10 W - 1000 ohm Power selection 5: 5 W - 2000 ohm Physical specifications Cabinet/Case Material: ABS Hardware: Wall mount bracket Grille: Steel Color: Black - RAL 9005, White - RAL 9003 Size / Weight Height: 403 mm / 15.87 inches Width: 193 mm / 7.6 inches Depth: 293 mm / 11.54 inches Weight: 6 kg / 13.23 lbs
