Yamaha's CS-500 Video Collaboration System uses the latest AI technology to combine voice and video data to deliver the most accurate, real-time hybrid collaboration experience.
Yamaha's newly developed SoundCap Eye™ technology locates exactly the positions of participants and tracks them while they are moving, reduces distracting background noise and adjusts the volume. This creates a relaxed and enjoyable remote meeting experience unlike any other. It’s like a skilled movie director, cameraman and sound director working together behind the scenes!
With its Easy Launch feature and multiple mounting options, the new CS Series products are made for use in any environment - even noisy, open office spaces. Collaborate and connect easily without hassle.

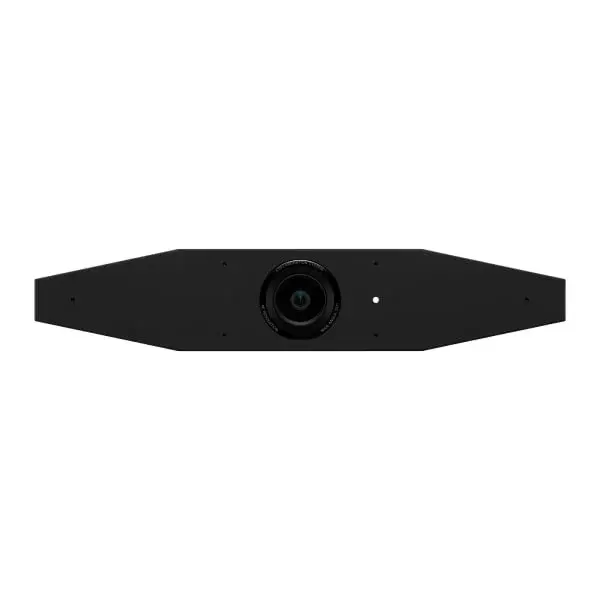

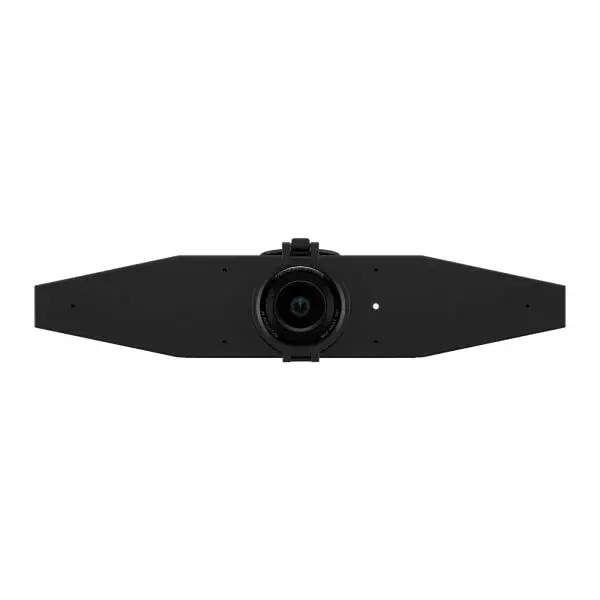

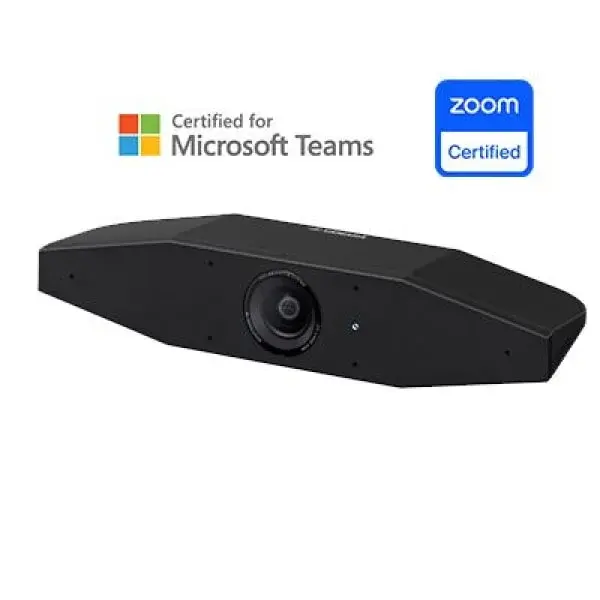

CS-500 Video Collaboration System for Huddle Spaces
Camera, and microphone remote collaboration device.
Newly developed SoundCap Eye™
4K Camera with Smart Framing
One-USB connection to start the collaboration
Engineered Adaptive echo canceller and Noise reduction
Hexa-microphone Beamforming

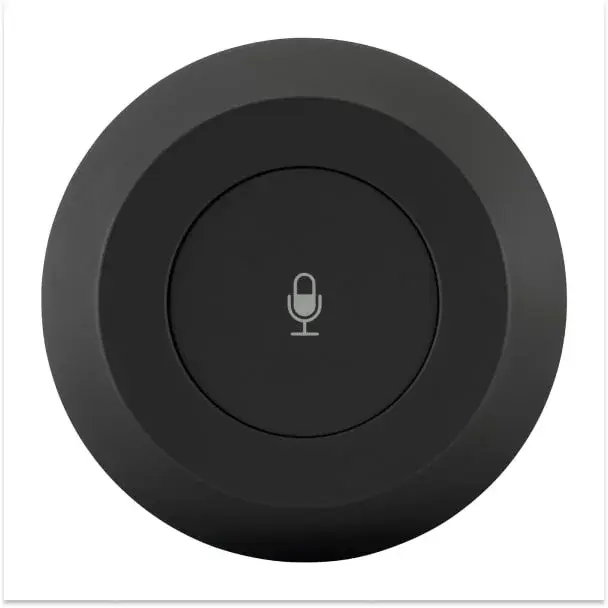

Iconic mute button of remote control
Multiple installation options
CS-500
General
Dimensions
W 261 mm × D 76 mm × H 51 mm
Weight
0.6 kg
Power Requirements
AC 100 - 240 V (50/60 Hz)
Maximum Power Consumption
15.0 W
In Operation
Temperature
0℃ - 40℃
Humidity
20% - 85% (No condensation)
Storage
Temperature
-20℃ - 60℃
Humidity
20% - 85% (No condensation)
Indicator
Status Indicator
Accessories
Read this first, Safety Guide, USB 2.0 cable (Type C-A, 5 m / 16.4 ft), HDMI cable (2 m / 6.6 ft), Remote control (RC-RBT1), Lens cap, Coin battery (CR2032) × 2, AC adaptor with power cord (CW2002100), Cable tie
Options
Mounting Accessory BRK-WL1, Mounting Accessory BRK-TV1/BRK-TV2, USB 3.2 Gen 1 cable (A-C) 10 m CBL-L10AC, USB 3.2 Gen 1 cable (A-C) 25 m CBL-L25AC
Supported OS
Windows 11, Windows 10, macOS 14, macOS 13, macOS 12, Chrome OS
Interface
USB (Type-C): USB 2.0/3.2 Gen 1, UAC 2.0, UVC 1.1, DisplayLink, HDMI: Version 1.4, Resolution: 720 x 480, 1,280 x 720, 1,366 x 768, 1,920 x 1,080, Frame rate: 30 fps, HDCP: Version 1.4, HDMI-CEC: Power control / Input selection, Bluetooth, Wi-Fi network
Installation
Installation above display (thickness up to 50 mm): Embedded leg, Installation above display (rigid): BRK-WL1 and BRK-TV1/BRK-TV2 (options), Installation below display: BRK-WL1 and BRK-TV1/BRK-TV2 (options), Wall mount installation: BRK-WL1 (option), Tripod installation: Embedded tripod screw hole
Audio
Microphones
Hexa-microphone (6x MEMS)
Microphone Coverage
Frontward 110 degrees audio pickup, Max distance: 6.0 m (19.6 ft, Face focus beamforming off) / 3.0 m (9.8 ft, Face focus beamforming on)
Frequency bandwidth
100 Hz - 16 kHz
Signal processing
Adaptive echo canceller, Noise reduction, Automatic tracking, Automatic gain control, Automatic room EQ, Dereverberation, SoundCap Eye (Face focus beamforming, Self-silence, Self volume balancer)
Camera and Video
Field of View
(4K) Diagonal:120 degrees, Horizontal: 110 degrees
Focus Distance
0.5 m (1.6 ft) to ∞
Frame Rate
6 fps, 7.5 fps, 10 fps, 15 fps, 30 fps
Resolution
3,840 x 2,160, 2,560 x 1,440, 1,920 x 1,080, 1,280 x 720, 640 x 360 *When using 3,840 x 2,160, 2,560 x 1,440 resolution, optional cables (CBL-L10AC or CBL-L25AC) that is USB 3.0 or greater is needed.
USB Output Format
YUY2, MJPEG, NV12
Frame Control
Smart framing (Group, Individual, Speaker tracking) or manual, pan-tilt-zoom (PTZ), configurable preset x 2, Maximum zoom ratio: 5.0x, People detection max distance: 4.5 m
User Interface

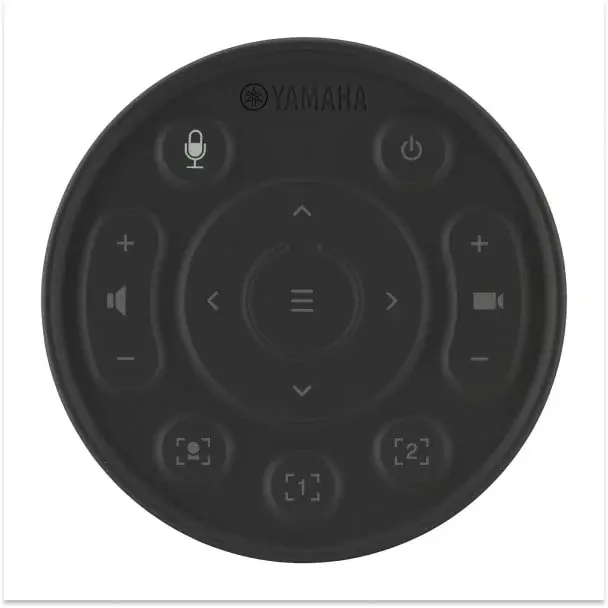

Remote Control
Power, Microphone mute x 2, Speaker volume, Camera ePTZ, Smart framing ON/OFF, Camera preset x 2, OSD menu control
OSD Menu
Meeting area, Smart framing mode, Camera preset, Mic, Speaker, Bluetooth
Yamaha CS Manager
Supported OS
Windows 11, Windows 10 (64 bit), macOS 14, macOS 13, macOS 12, Chrome OS
Functions
Device status monitor, Security setting, Power setting, Audio setting, Camera setting, Smart framing setting, Bluetooth setting, HDMI screen setting, Network (Wi-Fi) setting, NTP setting, Firmware upgrading, Factory default setting, Logs retrieving
