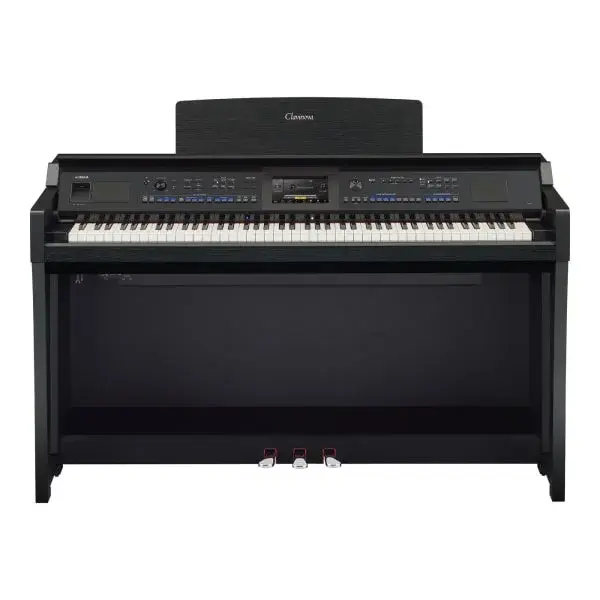

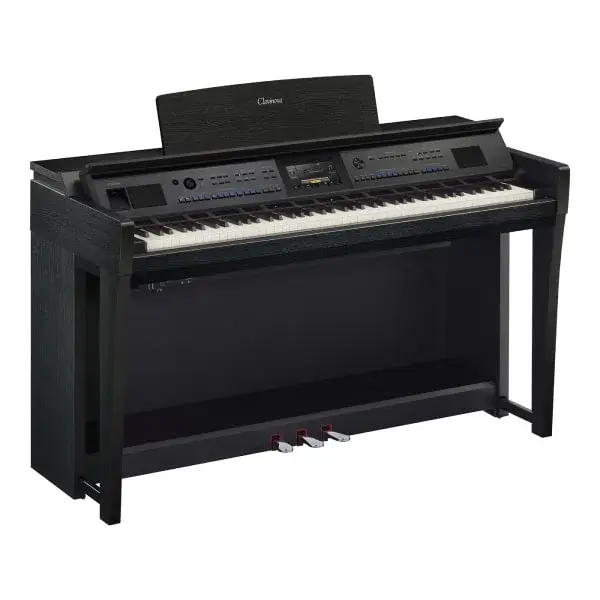

CVP-905
As the standard model CVP-900 Series, the CVP-905 offers grand piano-like playability and authentic Styles and Voices.
Yamaha CFX and Bösendorfer Imperial piano samples, Yamaha CFX and Bösendorfer binaural sampling
VRM (Virtual Resonance Modeling)
Grand Expression Modeling
GrandTouch™ Keyboard, 88-key Linear Graded Hammers
GrandTouch™ Pedals
525 Styles
1,315 Voices + 49 Drum/SFX Kits + 480 XG Voices
413 Songs
(45 W + 20 W) × 2 amplifiers
(16 cm + 2.5 cm (dome)) × 2 speaker system
Multi-track MIDI recording (SMF format 0)
USB Audio Recorder (Playback/Recording: WAV, MP3)
TFT color LCD (touch screen), 7.0 inch 800 x 480 dots
Smart Pianist app / Rec'n'Share app connectivity
Built-in Bluetooth® audio
The experience of playing with a full backing band, all from this one instrument
The CVP-900 Series comes with an array of Styles (accompaniments) featuring authentic instrument Voices created with the latest Yamaha technology and automatically providing accompaniments perfectly matched to your performance. This series lets you go beyond simply playing the piano, offering the opportunity to perform in an ensemble together with a variety of instruments for even more musical enjoyment.
An extensive range of features offering endless enjoyment
Connect a microphone and sing along as you play, follow along with built-in songs that are known around the world, and connect to an App to record your performance; the CVP Series comes with a variety of functions all packed into a single instrument, offering endless ways to enjoy music.
PLAYABILITY
Featuring the latest GrandTouch™ Keyboards with a broad dynamic range of touch and response on the level of a grand piano. Excellent consistency and nuanced expression give the pianist the utmost control over touch.
SENSITIVITY
Grand Expression Modeling is a groundbreaking new technology that enables pianists to use their techniques to produce the limitless tonal variation unique to grand pianos. The ability to vary the intensity and speed of touch to produce different tones adds another dimension to the joy of musical expression.
The CVP-905 is a model of a vertical turning center manufactured by Doosan, known for its precision and efficiency in machining tasks. Here are some key specifications for the CVP-905:
Maximum Turning Diameter : Approximately 1,200 mm (47.2 inches)
Maximum Turning Length : Up to 1,200 mm (47.2 inches)
Spindle Speed : Typically around 3,000 RPM, depending on the configuration
Spindle Motor Power : Usually about 15 kW (20 HP)
Tool Capacity : Varies, but typically equipped with a 12-tool or 24-tool automatic turret
Control System : Often equipped with a Fanuc or Siemens CNC control
Dimensions : The machine's footprint and overall dimensions will depend on the specific model and configuration
Weight : The weight of the machine can be around 7,000 kg (15,400 lbs), again depending on the exact configuration
These specifications might vary slightly based on the specific configuration and options selected. For the most accurate and detailed information, it’s best to consult the manufacturer's documentation or contact a dealer.
CVP-909
CVP-905
Size/Weight
Dimensions
Width
1,426 mm (56-1/8") (Polished finish: 1,429 mm (56-1/4"))
1,420 mm (55-15/16") (Polished finish: 1,423 mm (56-0"))
Height
868 mm (34-3/16") (Polished finish: 872 mm (34-5/16"))
868 mm (34-3/16") (Polished finish: 871 mm (34-5/16"))
Depth
612 mm (24-1/8") (Polished finish: 612 mm (24-1/8"))
592 mm (23-5/16") (Polished finish: 593 mm (23-3/8"))
Weight
Weight
82 kg (180 lb, 12 oz) (Polished finish: 85 kg (187 lb, 6 oz))
82 kg (180 lb, 12 oz) (Polished finish: 84 kg (185 lb, 3 oz))
Packing Box
Width
1,567 mm (61-11/16")
1,551 mm (61-1/16")
Height
716 mm (28-3/16")
708 mm (27-7/8")
Depth
745 mm (29-5/16")
736 mm (29")
Control Interface
Keyboard
Number of Keys
88
88
Type
GrandTouch Keyboard: wooden keys (white only), synthetic ebony and ivory key tops, escapement
GrandTouch Keyboard: wooden keys (white only), synthetic ebony and ivory key tops, escapement
Touch Sensitivity
Hard2/Hard1/Medium/Soft1/Soft2
Hard2/Hard1/Medium/Soft1/Soft2
88-key Linear Graded Hammers
Yes
Yes
Counterweight
Yes
-
Pedal
Number of Pedals
3
3
Half Pedal
Yes
Yes
GrandTouch Pedals
Yes (with GP Response Damper)
Yes
Functions
Sustain, Sostenuto, Soft, Glide, Song Play/Pause, Style Start/Stop, Volume, etc
Sustain, Sostenuto, Soft, Glide, Song Play/Pause, Style Start/Stop, Volume, etc
Display
Type
TFT Color LCD (Touch Screen)
TFT Color LCD (Touch Screen)
Size
800 × 480 dots 9.0 inch
800 × 480 dots 7.0 inch
LCD Brightness
Yes
Yes
Touch Screen
Yes
Yes
Color
Yes
Yes
Score Display Function
Yes
Yes
Lyrics Display Function
Yes
Yes
Text Viewer Function
Yes
Yes
Language
English, German, French, Spanish, Italian, Japanese
English, German, French, Spanish, Italian, Japanese
Panel
Language
English
English
Cabinet
Key Cover
Key Cover Style
Folding
Folding
Music Rest
Yes
Yes
Music Clips
Yes
Yes
Voices
Tone Generation
Piano Sound
Yamaha CFX, Bösendorfer Imperial
Yamaha CFX, Bösendorfer Imperial
Binaural Sampling
Yes (“CFX Concert Grand” and “Bösendorfer Grand” Voice only)
Yes (“CFX Concert Grand” and “Bösendorfer Grand” Voice only)
Key-off Samples
Yes
Yes
Smooth Release
Yes
Yes
Virtual Resonance Modeling (VRM)
Yes
Yes
Grand Expression Modeling
Yes
Yes
Polyphony
Number of Polyphony (Max.)
256
256
Preset
Number of Voices
1,605 Voices + 58 Drum/SFX Kits + 480 XG Voices
1,315 Voices + 49 Drum/SFX Kits + 480 XG Voices
Featured Voices
17 VRM Voices, 36 Super Articulation2 Voices, 301 Super Articulation Voices
14 VRM Voices, 227 Super Articulation Voices
Custom
Voice Edit
Yes
Yes
Compatibility
XG, GS (for Song playback), GM, GM2
XG, GS (for Song playback), GM, GM2
Effects
Types
Reverb
65 Preset + 30 User
65 Preset + 30 User
Chorus
107 Preset + 30 User
106 Preset + 30 Use
Master Compressor
5 Preset + 30 User
5 Preset + 30 User
Master EQ
5 Preset + 30 User
5 Preset + 30 User
Part EQ
27 Parts
27 Parts
Intelligent Acoustic Control (IAC)
Yes
Yes
Stereophonic Optimizer
Yes
Yes
Insertion Effect
358 Preset + 30 User
322 Preset + 30 User
Variation Effect
358 Preset + 30 User
322 Preset + 30 User
Vocal Harmony
54 Preset + 60 User
54 Preset + 60 User
Functions
Dual/Layers
Yes
Yes
Split
Yes
Yes
Accompaniment Styles
Preset
Number of Preset Styles
675
525
Fingering
Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
Style Control
INTRO × 3, MAIN VARIATION × 4, FILL × 4, BREAK, ENDING × 3
INTRO × 3, MAIN VARIATION × 4, FILL × 4, BREAK, ENDING × 3
Custom
Style Creator
Yes
Yes
Other Features
Music Finder
Yes
Yes
One Touch Setting (OTS)
4 for each Style
4 for each Style
Style Recommender
-
-
Chord Looper
Yes
Yes
File Format
Style File Format (SFF), Style File Format GE (SFF GE)
Style File Format (SFF), Style File Format GE (SFF GE)
Songs
Preset
Number of Preset Songs
50 Classics + 303 Lesson Songs + 60 Popular
50 Classics + 303 Lesson Songs + 60 Popular
Recording
Number of Tracks
16
16
Data Capacity
approx. 3 MB/Song
approx. 3 MB/Song
Recording Function
Yes
Yes
Compatible Data Format
Playback
SMF (Format 0, Format 1), XF
SMF (Format 0, Format 1), XF
Recording
SMF (Format 0)
SMF (Format 0)
Functions
Demo
Yes
Yes
Registration
Number of Buttons
8
8
Control
Registration Sequence, Freeze
Registration Sequence, Freeze
Playlist
Number of Records
2,500
2,500
Lesson/Guide
Lesson/Guide
Follow Lights, Any Key, Karao-Key, Your Tempo (with guide lamps)
Follow Lights, Any Key, Karao-Key, Your Tempo (with guide lamps)
Guide Lamp
Yes
Yes
Performance Assistant Technology (PAT)
Yes
Yes
Piano Room
Yes
Yes
USB Audio Recorder
Playback
WAV (44.1kHz, 16bit, stereo), MP3 (MPEG-1 Audio Layer-3)
WAV (44.1kHz, 16bit, stereo), MP3 (MPEG-1 Audio Layer-3)
Recording
WAV (44.1kHz, 16bit, stereo), MP3 (MPEG-1 Audio Layer-3)
WAV (44.1kHz, 16bit, stereo), MP3 (MPEG-1 Audio Layer-3)
USB Audio
Time Stretch
Yes
Yes
Pitch Shift
Yes
Yes
Vocal Cancel
Yes
Yes
Miscellaneous
Metronome
Yes
Yes
Tempo Range
5 - 500, Tap Tempo
5 - 500, Tap Tempo
Transpose
−12 - 0 - +12
−12 - 0 - +12
Tuning
414.8 - 440 - 466.8 Hz (approx. 0.2 Hz increments)
414.8 - 440 - 466.8 Hz (approx. 0.2 Hz increments)
Scale Type
9 Types
9 Types
Display Out
Yes (by using a commercially available USB display adaptor*)
Yes (by using a commercially available USB display adaptor*)
Bluetooth
Yes (Audio)
Yes (Audio)
Storage and Connectivity
Storage
Internal Memory
approx. 2 GB
approx. 2 GB
External Drives
USB flash drive
USB flash drive
Connectivity
Headphones
Standard stereo phone jack (× 2)
Standard stereo phone jack (× 2)
Microphone
Mic/Line in (standard mono phone jack), Input volume
Mic/Line in (standard mono phone jack), Input volume
MIDI
IN, OUT, THRU
IN, OUT, THRU
AUX IN
Stereo mini jack
Stereo mini jack
AUX OUT
L/L+R, R
L/L+R, R
AUX Pedal
Yes
Yes
USB TO DEVICE
Yes (× 2)
Yes (× 2)
USB TO HOST
Yes
Yes
Amplifiers and Speakers
Amplifiers
(40 W + 30 W + 20 W) × 2 + 80 W
(45 W + 20 W) × 2
Speakers
16 cm + 5 cm + 2.5 cm (dome)) × 2 + 20 cm, Spruce Cone Speaker, Twisted Flare Port
(16 cm + 2.5 cm (dome)) × 2
Power Supply
Power Consumption
64W
52W
Accessories
Accessories
Headphones (HPH-150/HPH-100/HPH-50), Footswitches (FC4A/FC5), Foot controller (FC7), USB wireless LAN adaptor (UD-WL01
