VXC Series “F model”
Low-profile ceiling speakers designed for superior music reproduction
Music can play an integral role in defining the aesthetic and atmosphere of a commercial space, greatly enhancing the overall experience for customers and clientele. By combining Yamaha’s unrivaled acumen for developing state of the art musical instruments and professional audio technologies, with a flexible approach towards design and application, VXC-F ceiling speakers allow you to streamline the installation process and seamlessly integrate high-quality audio into a restaurant, retail, or professional environment. Featuring a newly designed speaker unit, optimally tuned for music playback, the VXC-F’s shallow, lightweight construction and flexible design can easily adapt to the strictest installation limitations, ensuring superb audio performance wherever they’re placed.

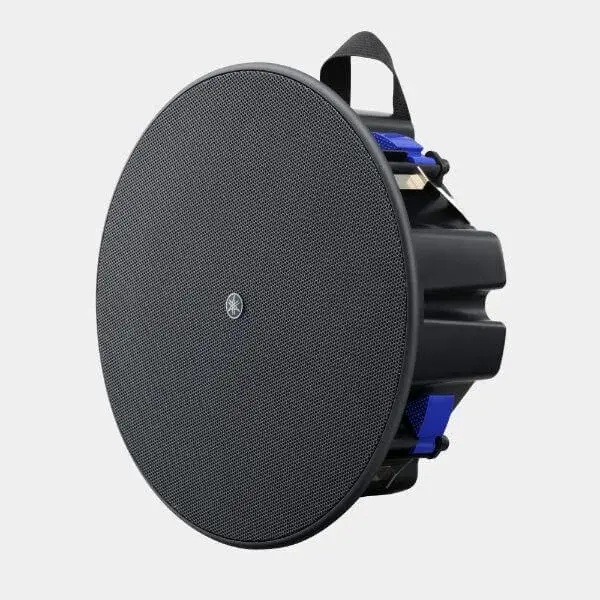

VXC3F Ceiling speaker
3.5″ full-range low-profile ceiling speaker
3.5” full-range speaker unit
Engineered for optimum BGM reproduction
Low-profile design facilitates installation in limited ceiling spaces
Direct support for low-impedance or high-impedance connections
Built-in carrying band increases safety during installation
Anti-drop tab mechanism provide secure temporary positioning during installation
Double-threaded speaker clamp screws for speedy tightening
Paintable grilles with magnetic catches
Black and white versions available
2.5kg (5.5lbs), Ø285 x D112 mm (Ø11-1/4″ x D4-7/16″)
VXC5F / VXC5FW
VXC3F / VXC3FW
VXC2FB / VXC2FW
General specifications
Speaker type
Full range, Bass reflex
Full range, Bass reflex
Full range, Bass reflex
Frequency range (-10dB)
60 Hz - 20 kHz (Half-space:2π)
71 Hz - 20 kHz (Half-space:2π)
67 Hz - 20 kHz (Half-space 2π)
Nominal coverage
130° conical (Half-space :2π)
140° conical (Half-space :2π)
160゜conical (Half-space 2π)
Components
LF-HF
4.5” Full range unit
3.5” Full range unit
2.5" Full range unit
Power rating
NOISE
40 W
20 W
15 W
PGM
80 W
40 W
30 W
PEAK
160 W
80 W
60 W
Nominal impedance
8 Ω
8 Ω
8 Ω
Transformer taps
100V
30 W, 15W, 7.5 W
15W, 7.5 W, 3.8 W
15 W, 7.5 W, 3.8 W, 1.9 W
70V
30 W, 15 W, 7.5 W, 3.8 W
15 W, 7.5 W, 3.8 W, 1.9 W
15 W, 7.5 W, 3.8 W, 1.9 W, 1 W
SPL
Sensitivity (1W; 1m on axis)
89 dB SPL (Half-space:2π)
87 dB SPL (Half-space:2π)
86 dB SPL (Half-space 2π)
Peak (Calculated)
111 dB SPL (Calculated, 1m)
106 dB SPL (Calculated, 1m)
104 dB SPL (Calculated, 1m)
I/O connectors
Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)
Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)
Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)
Protection circuit
Load protection
Full-range power limiting to protect network and transducers
Full-range power limiting to protect network and transducers
Full-range power limiting to protect network and transducers
Finish
VXC5F: Black (approx. Munsell N3), VXC5FW: White (approx. Munsell N9.3)
VXC3F: Black (approx. Munsell N3), VXC3FW: White (approx. Munsell N9.3)
VXC2FB: Black (approx. Munsell N3), VXC2FW: White (approx. Munsell N9.3)
Dimensions
Diameter
324 mm (12-13/16")
285 mm (11-1/4")
225 mm (8-7/8")
D
143 mm (5-11/16")
112 mm (4-7/16")
89 mm (3-1/2")
Net weight
3.1 kg (6.8 lbs)
2.5 kg (5.5 lbs)
1.7 kg (3.7 lbs)
Cutout size
Ø285 mm (Ø11-1/4")
Ø247 mm (Ø9-3/4")
Ø186 mm (Ø7-5/16")
Required ceiling board thickness
5 mm - 37 mm
5 mm - 37 mm
5 mm - 37 mm
Accessories
O-ring, Tile Rail, Cutout Template, Euro Block (4pin), Terminal Cover
O-ring, Tile Rail, Cutout Template, Euro Block (4pin), Terminal Cover
Cutout Template
Packaging
Packaged in pairs
Packaged in pairs
Single package
Certificate
UL1480, NFPA70, CE, EAC, RoHS
UL1480, NFPA70, CE, EAC, RoHS
UL1480, UL2043, NFPA70, CE, EAC, RoHS
EN54-24 compliance
-
-
-
Others
Conduit tube: Ø15.4 mm - Ø21.3 mm
Conduit tube: Ø15.4 mm - Ø21.3 mm
Conduit tube: Ø15.4 mm - Ø21.3 mm
Options
-
-
PK-C4B / PK-C4W: Pendant-mount kit, AB-C2: C-ring + Tile Rail kit
