Yamaha VXC5F
Yamaha 4.5″ full-range ceiling speakers. 80 watts Program, 8Ω / 100 volt line. Pair.

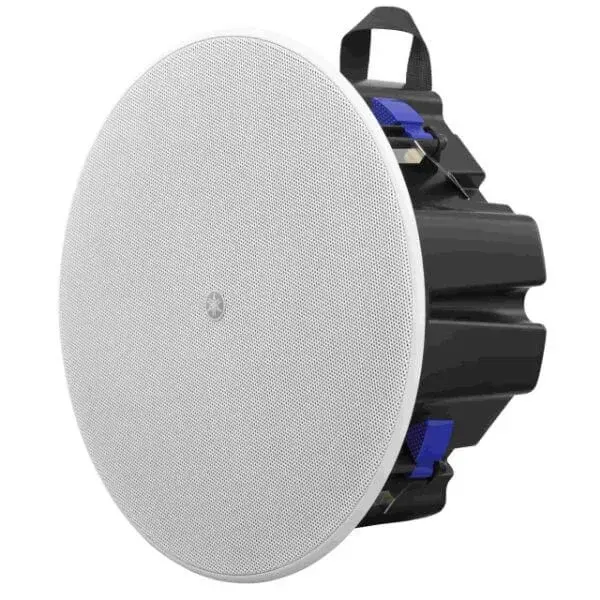

The Yamaha VXC-5F ceiling speakers feature a newly designed speaker unit, optimally tuned for music playback. 4.5″ full range drive unt, program power 80 watts, and compatible with 8 ohm low impedance background music systems as well as high impedance sound systems.
The low profile, lightweight construction and flexible design is ideal for restricted installation space and the speaker size has been carefully matched to the back box volume to ensure superb audio performance.
The design enables a safer, faster installation. A carry strap enables safe carrying of the speaker, especially when climbing ladders and an anti-drop tab mechanism holds the speaker in place whilst tightening the fast fix double threaded clamp screws.
The tapping selector is mounted on the downward facing side of the loudspeaker, to enable easy adjustment after installation. The grille then simply clicks into place, held by powerful magnets (and a saftey wire) for a streamlined appearance.
Available in black or white.
4.5” full-range speaker unit
Engineered for optimum BGM reproduction
Wide coverage allows a single speaker to cover a wide area
Direct low-impedance or high-impedance connections
Low-profile design for installation in limited ceiling spaces
Built-in carrying band increases safety during installation
Anti-drop tab mechanism provide secure temporary positioning during installation
Double-threaded speaker clamp screws for speedy tightening
Paintable grilles with magnetic catches
Black and white versions available
VC4B / VC4W
General specifications
Speaker type
2way Coaxial type, Acoustic Suspension
Frequency range (-10dB)
121 Hz - 20 kHz (Half-space: 2π)
Nominal coverage
160° conical (Half-space: 2π)
Components
LF
4” Cone
HF
0.8" Film dome
Power rating
NOISE
15 W
PGM
30 W
PEAK
60 W
Nominal impedance
16 Ω
Transformer taps
100V
6 W, 3 W, 1.5 W
70V
6 W, 3 W, 1.5 W, 0.8 W
SPL
Sensitivity (1W; 1m on axis)
88 dB SPL (Half-space:2π)
Peak (Calculated)
106 dB SPL (Calculated, 1 m)
I/O connectors
Euroblock (4 pin) ×1 (input: +/ - , loop - thru: +/ - ), Wire size : Min. AWG24 (0.2 sq), Max. AWG12 (3.5 sq)
Protection circuit
Load protection
Full-range power limiting to protect network and transducers
Finish
VC4B: Black (approx. Munsell N3), VC4W: White (approx. Munsell N9.3)
Dimensions
Diameter
225 mm (8 - 7/8")
D
95 mm (3 - 3/4")
Net weight
2.1 kg (4.6 lbs)
Cutout size
Ø186 mm (Ø7 - 5/16")
Required ceiling board thickness
2 mm - 37 mm
Accessories
Grille, Safety wire, Cutout template, Owner's Manual
Packaging
Single package
Certificate
UL1480A, UL2043, NFPA70, CE, RoHS
Options
AB-C2: C-ring + Tile Rail kit
