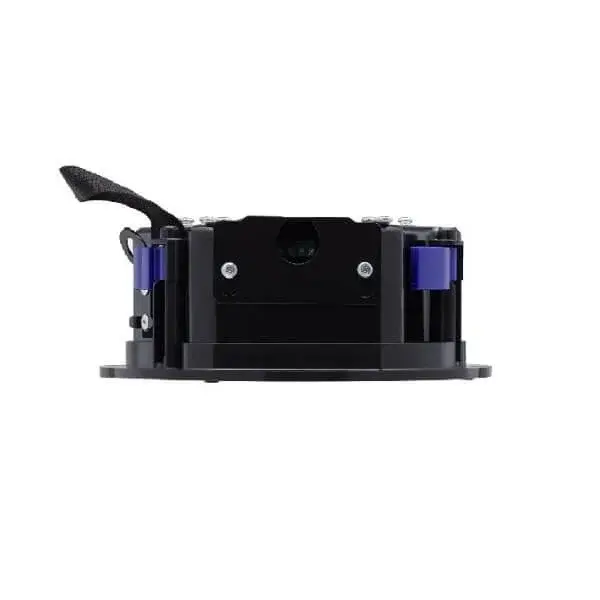

Music can play an integral role in defining the aesthetic and atmosphere of a commercial space, greatly enhancing the overall experience for customers and clientele. By combining Yamaha’s unrivaled acumen for developing state of the art musical instruments and professional audio technologies, with a flexible approach towards design and application, VXC-F ceiling speakers allow you to streamline the installation process and seamlessly integrate high-quality audio into a restaurant, retail, or professional environment. Featuring a newly designed speaker unit, optimally tuned for music playback, the VXC-F’s shallow, lightweight construction and flexible design can easily adapt to the strictest installation limitations, ensuring superb audio performance wherever they’re placed.https://youtu.be/T71S1Q3dwLI2.5 full-range low-profile ceiling speaker 2.5” full-range speaker unit Engineered for optimum BGM reproduction Low-profile design facilitates installation in limited ceiling spaces Direct support for low-impedance or high-impedance connections Built-in carrying band increases safety during installation Double-threaded speaker clamp screws for speedy tightening Paintable grilles with magnetic catches Black and white versions available 1.7 kg (3.7 lbs), Ø225 x D89 mm (Ø8-7/8 x D3-1/2)
full-range low-profile ceiling speaker
2.5” full-range speaker unit
Engineered for optimum BGM reproduction
Low-profile design facilitates installation in limited ceiling spaces
Direct support for low-impedance or high-impedance connections
Built-in carrying band increases safety during installation
Double-threaded speaker clamp screws for speedy tightening
Paintable grilles with magnetic catches
Black and white versions available
1.7 kg (3.7 lbs), Ø225 x D89 mm (Ø8-7/8" x D3-1/2")
Optional pendant-mount kit (PK-C4) and tile rail kit (AB-C2) are available
VXC2FW
General specifications
Speaker type
Full range, Bass reflex
Frequency range (-10dB)
67 Hz - 20 kHz (Half-space 2π)
Nominal coverage
160゜conical (Half-space 2π)
Components
LF-HF
2.5" Full range unit
Power rating
NOISE
15 W
PGM
30 W
PEAK
60 W
Nominal impedance
8 Ω
Transformer taps
100V
15 W, 7.5 W, 3.8 W, 1.9 W
70V
15 W, 7.5 W, 3.8 W, 1.9 W, 1 W
SPL
Sensitivity (1W; 1m on axis)
86 dB SPL (Half-space 2π)
Peak (Calculated)
104 dB SPL (Calculated, 1m)
I/O connectors
Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)
Protection circuit
Load protection
Full-range power limiting to protect network and transducers
Finish
VXC2FB: Black (approx. Munsell N3), VXC2FW: White (approx. Munsell N9.3)
Dimensions
Diameter
225 mm (8-7/8")
D
89 mm (3-1/2")
Net weight
1.7 kg (3.7 lbs)
Cutout size
Ø186 mm (Ø7-5/16")
Required ceiling board thickness
5 mm - 37 mm
Accessories
Cutout Template
Packaging
Single package
Certificate
UL1480, UL2043, NFPA70, CE, EAC, RoHS
EN54-24 compliance
-
Others
Conduit tube: Ø15.4 mm - Ø21.3 mm
Options
PK-C4B / PK-C4W: Pendant-mount kit, AB-C2: C-ring + Tile Rail kit
The Yamaha VXC-2FW is a high-quality ceiling speaker system designed for commercial installations, such as restaurants, retail stores, offices, and other public spaces. Here are the details, specs, and selling points of the Yamaha VXC-2FW:
1. Design and Construction: - The VXC-2FW features a compact and stylish design that seamlessly blends into any architectural space. - It has a low-profile grille that can be painted to match the ceiling color, providing a discreet and aesthetically pleasing installation.
2. Speaker Configuration: - The system consists of two speakers, allowing for stereo sound reproduction in the designated area. - Each speaker unit comprises a 2.5" woofer and a 1" soft dome tweeter, delivering a balanced and accurate audio performance.
3. Sound Quality: - The VXC-2FW offers high-quality sound reproduction with a frequency response of 70Hz to 20kHz, ensuring clear and detailed audio across various music genres and speech applications. - The 2-way design provides a wide dispersion angle, allowing for even coverage throughout the listening area.
4. Easy Installation: - The system features a simple and efficient installation process, making it ideal for both new constructions and retrofit applications. - It includes a tile bridge and a cutout template for precise placement and mounting in suspended ceilings.
5. Versatile Applications: - The Yamaha VXC-2FW is suitable for a range of applications, including background music, paging systems, foreground music, and announcements in commercial environments. - It offers a reliable and consistent performance, making it suitable for both small and large installations.
6. Weather-Resistant Design: - The VXC-2FW is designed for indoor use but has a weather-resistant rating of IP35, providing protection against dust and water splashes, making it suitable for environments with high humidity levels, such as bathrooms or outdoor covered areas.
