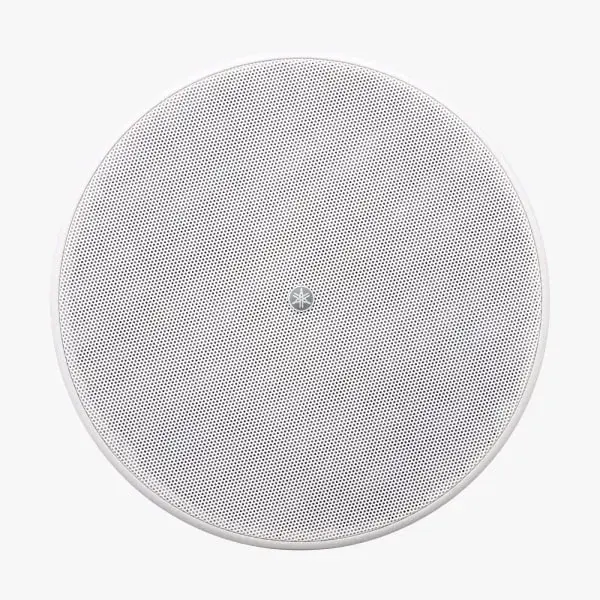

Yamaha VXC-3FW Yamaha Celling Speaker Pair

3.5" full-range low-profile ceiling speaker 3.5” full-range speaker unit Engineered for optimum BGM reproduction Low-profile design facilitates installation in limited ceiling spaces Direct support for low-impedance or high-impedance connections Built-in carrying band increases safety during installation Anti-drop tab mechanism provide secure temporary positioning during installation Double-threaded speaker clamp screws for speedy tightening Paintable grilles with magnetic catches Black and white versions available 2.5kg (5.5lbs), Ø285 x D112 mm (Ø11-1/4" x D4-7/16") General specifications VXC3F / VXC3FW General specifications Speaker type Full range, Bass reflex Frequency range (-10dB) 71 Hz - 20 kHz (Half-space:2π) Nominal coverage 140° conical (Half-space :2π) Components LF-HF 3.5” Full range unit Power rating NOISE 20 W PGM 40 W PEAK 80 W Nominal impedance 8 Ω Transformer taps 100V 15W, 7.5 W, 3.8 W 70V 15 W, 7.5 W, 3.8 W, 1.9 W SPL Sensitivity (1W; 1m on axis) 87 dB SPL (Half-space:2π) Peak (Calculated) 106 dB SPL (Calculated, 1m) I/O connectors Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-) Protection circuit Load protection Full-range power limiting to protect network and transducers Finish VXC3F: Black (approx. Munsell N3), VXC3FW: White (approx. Munsell N9.3) Dimensions Diameter 285 mm (11-1/4") D 112 mm (4-7/16") Net weight 2.5 kg (5.5 lbs) Cutout size Ø247 mm (Ø9-3/4") Required ceiling board thickness 5 mm - 37 mm Accessories O-ring, Tile Rail, Cutout Template, Euro Block (4pin), Terminal Cover Packaging Packaged in pairs Certificate UL1480, NFPA70, CE, EAC, RoHS EN54-24 compliance - Others Conduit tube: Ø15.4 mm - Ø21.3 mm Options - Carrying Band Anti-Drop Tab Hi-Z or Lo-Z Both high-impedance and low-impedance connections are supported, and speaker wattage can be easily switched even after installation. Low Profile Reduced physical depth allows installation in ceilings where space is limited. Lightweight Reduced weight increases installation flexibility while lessening the burden on installation personnel. Portable A built-in "carrying band" not only makes the speaker easy to carry around, but also increases safety when working on a stepladder. Secure An anti-drop tab mechanism securely holds the speaker in place so that the installation can proceed safely and efficiently. There’s also a release lever that allows the speaker to be smoothly removed from the ceiling as required. * Not available with the VXC2F Fast Double threaded screws used for the speaker clamp mechanism allow the clamps to be tightened twice as fast as conventional screws. Streamlined The supplied speaker grilles are firmly and elegantly held in place by powerful magnets. An anti-drop wire is also included. Paintable
