Yamaha VXC-8SB Celling Sub Instalation

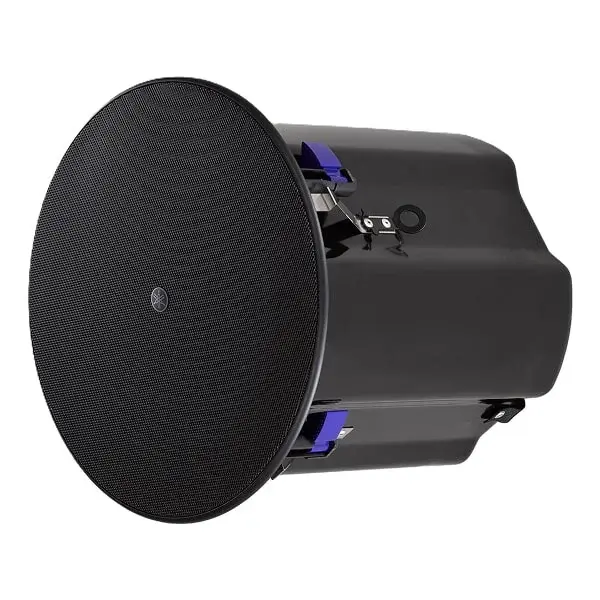

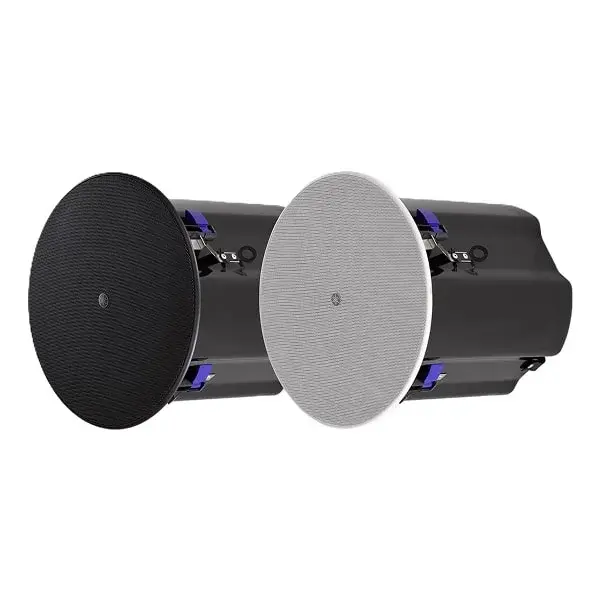

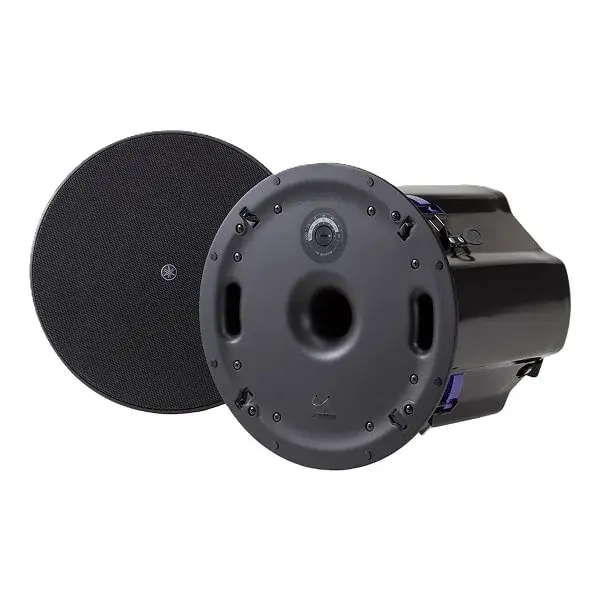

8" ceiling subwoofer Sound and size ideally matched to the VXS and VXC series Band-pass design ensures smooth, distortion-free low-frequency extension Direct support for low-impedance or high-impedance connections Built-in carrying band increases safety during installation Anti-drop tab mechanism provide secure temporary positioning during installation Double-threaded speaker clamp screws for speedy tightening Paintable grilles with magnetic catches Black and white versions available 8.7kg (19.2lbs), Ø324 x D314 mm (Ø12-13/16" x D12-23/64") AB-C8S (sold separately) is required to secure safe installation of VXC8S Naturally Extended Lows Bring the Music to Life VXC series “S model" ceiling subwoofers are ideal matches for VXS and VXC series speakers, smoothly extending the low frequency range with superb sonic quality for bigger, more true-to-life musical reproduction without spoiling interior design of architectures. VXC8SB / VXC8SW General specifications Speaker type Band-pass type Subwoofer Frequency range (-10dB) 44 Hz - 200 Hz (Half-space 2π) Nominal coverage - Components LF 8" Cone Power rating NOISE 100 W PGM 200 W PEAK 400 W Nominal impedance 8 Ω Transformer taps 100V 60 W, 30 W, 15 W, 7.5 W 70V 60 W, 30 W, 15 W, 7.5 W, 3.8 W SPL Sensitivity (1W; 1m on axis) 88 dB SPL (Half-space 2π) Peak (Calculated) 114 dB SPL (Calculated, 1m) I/O connectors Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-) Protection circuit Load protection Full-range power limiting to protect network and transducers Finish VXC8SB: Black (approx. Munsell N3), VXC8SW: White (approx. Munsell N9.3) Dimensions Diameter 324 mm (12-13/16") D 314 mm (12-23/64") Net weight 8.7 kg (19.2 lbs) Cutout size Ø285 mm (Ø11-7/32") Required ceiling board thickness 5 mm - 37 mm Accessories Cutout Template Packaging Single package Certificate UL1480, UL2043, NFPA70, CE, EAC, RoHS EN54-24 compliance - Others Conduit tube: Ø15.4 mm - Ø21.3 mm Options AB-C8S: O-ring + Tile Rail kit
