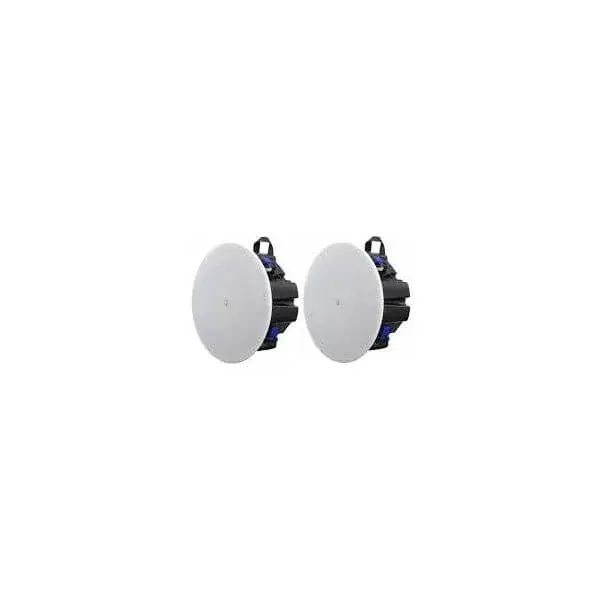

4.5” full-range speaker unitTailored for optimum BGM reproductionWide coverage allows a single speaker to cover a wide areaDirect support for low-impedance or high-impedance connectionsLow-profile design facilitates installation inlimited ceiling spacesBuilt-in carrying band increases safety during installationAnti-drop tab mechanism provide secure temporary positioning during installationDouble-threaded speaker clamp screws for quick tighteningPaintable grilles with magnetic catchesBlack version also availableSupplied grilles can be painted any color to match interior décor
VXC5F / VXC5FW
VXC3F / VXC3FW
VXC2FB / VXC2FW
General specifications
Speaker type
Full range, Bass reflex
Full range, Bass reflex
Full range, Bass reflex
Frequency range (-10dB)
60 Hz - 20 kHz (Half-space:2π)
71 Hz - 20 kHz (Half-space:2π)
67 Hz - 20 kHz (Half-space 2π)
Nominal coverage
130° conical (Half-space :2π)
140° conical (Half-space :2π)
160゜conical (Half-space 2π)
Components
LF-HF
4.5” Full range unit
3.5” Full range unit
2.5" Full range unit
Power rating
NOISE
40 W
20 W
15 W
PGM
80 W
40 W
30 W
PEAK
160 W
80 W
60 W
Nominal impedance
8 Ω
8 Ω
8 Ω
Transformer taps
100V
30 W, 15W, 7.5 W
15W, 7.5 W, 3.8 W
15 W, 7.5 W, 3.8 W, 1.9 W
70V
30 W, 15 W, 7.5 W, 3.8 W
15 W, 7.5 W, 3.8 W, 1.9 W
15 W, 7.5 W, 3.8 W, 1.9 W, 1 W
SPL
Sensitivity (1W; 1m on axis)
89 dB SPL (Half-space:2π)
87 dB SPL (Half-space:2π)
86 dB SPL (Half-space 2π)
Peak (Calculated)
111 dB SPL (Calculated, 1m)
106 dB SPL (Calculated, 1m)
104 dB SPL (Calculated, 1m)
I/O connectors
Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)
Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)
Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)
Protection circuit
Load protection
Full-range power limiting to protect network and transducers
Full-range power limiting to protect network and transducers
Full-range power limiting to protect network and transducers
Finish
VXC5F: Black (approx. Munsell N3), VXC5FW: White (approx. Munsell N9.3)
VXC3F: Black (approx. Munsell N3), VXC3FW: White (approx. Munsell N9.3)
VXC2FB: Black (approx. Munsell N3), VXC2FW: White (approx. Munsell N9.3)
Dimensions
Diameter
324 mm (12-13/16")
285 mm (11-1/4")
225 mm (8-7/8")
D
143 mm (5-11/16")
112 mm (4-7/16")
89 mm (3-1/2")
Net weight
3.1 kg (6.8 lbs)
2.5 kg (5.5 lbs)
1.7 kg (3.7 lbs)
Cutout size
Ø285 mm (Ø11-1/4")
Ø247 mm (Ø9-3/4")
Ø186 mm (Ø7-5/16")
Required ceiling board thickness
5 mm - 37 mm
5 mm - 37 mm
5 mm - 37 mm
Accessories
O-ring, Tile Rail, Cutout Template, Euro Block (4pin), Terminal Cover
O-ring, Tile Rail, Cutout Template, Euro Block (4pin), Terminal Cover
Cutout Template
Packaging
Packaged in pairs
Packaged in pairs
Single package
Certificate
UL1480, NFPA70, CE, EAC, RoHS
UL1480, NFPA70, CE, EAC, RoHS
UL1480, UL2043, NFPA70, CE, EAC, RoHS
EN54-24 compliance
-
-
-
Others
Conduit tube: Ø15.4 mm - Ø21.3 mm
Conduit tube: Ø15.4 mm - Ø21.3 mm
Conduit tube: Ø15.4 mm - Ø21.3 mm
Options
-
-
PK-C4B / PK-C4W: Pendant-mount kit, AB-C2: C-ring + Tile Rail kit
