Yamaha VXH8 Pendant Speaker White

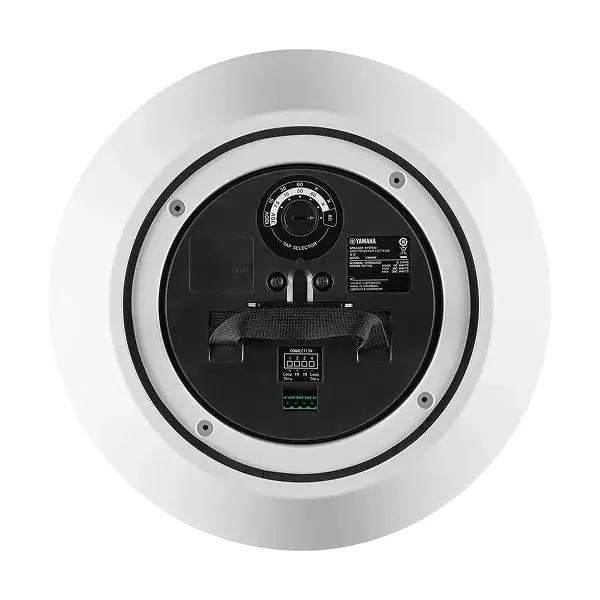

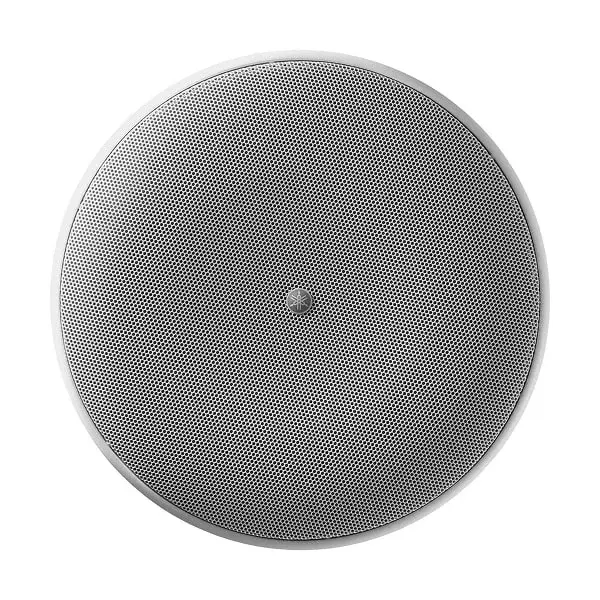

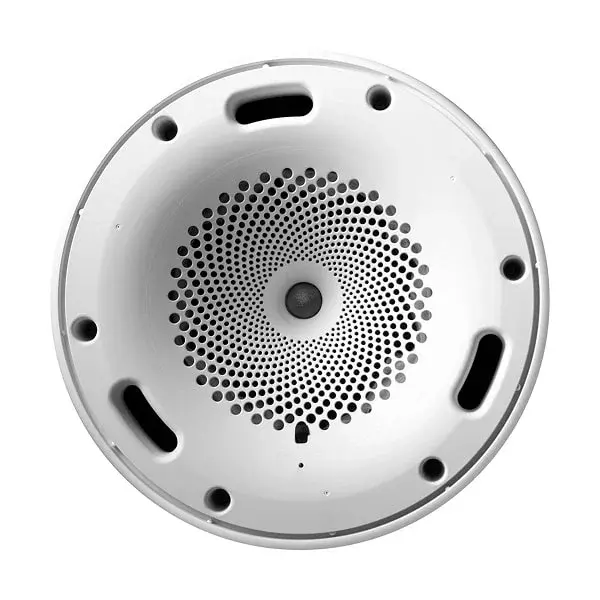

VXH8B / VXH8W Pendant Speaker 2-way system with 8-inch woofer and 1-inch tweeter Narrow dispersion (75°) with "permeable" waveguide and 360W power handling Engineered for optimum BGM and voice reproduction Pendant speaker suitable for high, open structure or sloped ceilings Direct support for low-impedance or high-impedance connections Paintable grilles with magnetic catches 2 x 6 m steel wire cables by Gripple 7.2 kg (15.9 lbs), Ø356 x D434 mm (Ø14-1/64” D17-3/32”) Single unit package VXH8B / VXH8W General specifications Speaker type Coaxial 2 way, Bass reflex type Frequency range (-10dB) 57 Hz - 20 kHz (Full-space:4π) Nominal coverage 75° conical (Full-space:4π) Crossover Frequencies 3 kHz Components LF 8" (20 cm) Cone HF 1" (2.5 cm) Soft Dome Power rating NOISE 90 W PGM 180 W PEAK 360 W Nominal impedance 8 Ω Transformer taps 100V 60 W, 30 W, 15 W 70V 60 W, 30 W, 15 W, 7.5 W SPL Sensitivity (1W; 1m on axis) 94 dB (Full-space:4π) Peak (Calculated) 120 dB (Calculated, 1 m) I/O connectors Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-): Min. wire size AWG 24 (0.2 sq), Max. wire size AWG 12 (3.5 sq) Protection circuit Load protection Full-range power limiting to protect network and transducers Finish VXH8B Black powder coating (approximate value: Munsell N3), VXH8W White powder coating (approximate value: Munsell N9.3) Dimensions Diameter Ø356 mm (14") D 434 mm (17 - 3/32") Net weight 7.2 kg Accessories Gripple Kit × 1, Euro Block (4 pin) × 1, Cushion Seal × 1, Back Cover Set × 1, Owner’s Manual × 1, GRIPPLE Kit Installation Guide × 1 Dust and water resistant IP45 (when waterproofing the cover hole) Packaging Single package Certificate UL1480A, NFPA70, CE, RoHS
