4-channel Benchmark Amplifier with DSP and optional Dante™
Overview
Powersoft X4 innovates and evolves the concept of the amplification platform through the integration of a worldwide compatible power-box and a full feature DSP inside the power amplifier.
The complete digital audio signal management system based on ARM Cortex A-8 processor and TI C6000 DSP platform heralds new and innovative level of signal processing, providing non-boolean routing and mixing, multi-stage equalization with raised-cosine, IIR and FIR filters, delay up to 2s in input processing and 100ms for time alignment, gain and polarity adjustment, crossover, peak limiters, TruePower™ limiters and Active DampingControl™.
The power supply permits worldwide AC acceptance and direct connection to any regional power line configuration: it is now suitable to Single Phase, Bi-Phase or Three Phase operation from 85 VAC up to 440 VAC without the need of manual selection. True Three Phase load balancing is directly achievable by the unit without any complex load assignment in the power distribution system design.
Features
Power supply
Patented output filter with ripple cancellation network
Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket
Protections
Fully protected circuit design with:
Ac protection: shut down power supply when AC mains voltage is outside operating range
Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
DC protection: protects against infrasonic signal at the outputs
VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
Long term limiter: protects the loudspeaker against steady long term rms (non audio) signals reducing maximum output
Thermal protection: output stages operating temperature up to 80 °C (176 °F)
Temperature controlled continuous variable speed fan, front to back airflow
Temperature forecast with LCD traced historical behavior
General
Flexible routing/mixing provided by the internal 4x4 input/output matrix, allows the user to mix and route analog and digital I/O.

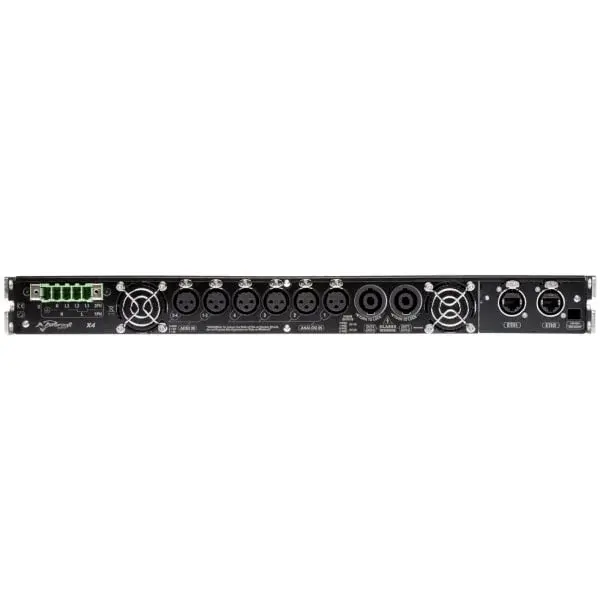

4 input channels with physical analog and digital AES3 connectors.
Optional 16-in/8-out redundant Dante™ connection provide maximum flexibility.
Improved reliability thanks to the customizable input backup policy that allows to automatically switch input source in case of signal failure.
Complete user interface integrated into ArmoníaPlus.
Wi-Fi remote monitoring through mobile devices.
Settings
Non-boolean channel routing
Input signal backup policy aimed to improve reliability against signal fault
Signal grouping for speaker routing
Built in WiFi remote management
Monitoring
Hardware monitor available for fast local diagnostic
Load impedance measurement / display for each channel
Output power measurements / display for each channel
Mains voltage and current measurements / display
Digital Signal Processing
TI C6000 DSP platform architecture
AD/DA converter: dual 24bit @ 48 kHz Tandem® architecture, 127 dB dynamic range, per channel
Input/output independent equalizers per channel providing Raised-cosine, custom FIR, parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass
Crossovers: linear phase (FIR), hybrid (FIR-IIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR)
Input delay up to 2s and output delay up to 100ms for time alignment per channel
Active DampingControl™ for cable compensation
Power limiter (TruePower™, RMS voltage, RMS current) + Peak Limiter
Remote management
Control and monitoring through ArmoníaPlus
Dedicated Web App
Specsifications:
General
Output power per channel
Output power per channel: 5200 W @ 2 Ω, 3000 W @ 4 Ω, 1600 W @ 8 Ω
Bridge mode; 10400 W @ 4 Ω, 6000 W @ 8 Ω
Max output voltage / current
Max unclipped output voltage @8 Ω: 175 Vpeak
Current: 130 Apeak
AC MAIN POWER
Power supply: Universal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement: 100-240 V ±10%, 50-60 Hz
Operating voltage: 90 V - 264 V
Power consumption
Idle: <100 W
Max: <3000 W
Operating temperature range: 0° - 35° C - 32° - 95° F
Thermal dissipation*
1/8 of max output power @ 8 Ω: 115 V: 1127BTU/h: 230 V: 1058BTU/h
1/4 of max output power @ 8 Ω: 115 V: 2124BTU/h: 230 V: 1639BTU/h
Package includes:
Powersoft X4 4 channel amplifier x1
Power cord (PC 5/5-STF1-7,62 Phoenix plug) x1
Power cord shell x1
