The Powersoft X8 amplifier is engineered for versatility and ease of use in various operational environments. It is ideal for driving both subwoofers and high-power full-range systems , making it suitable for numerous audio configurations.
Key features include:
Flexible Power Supply : The X8's power supply works with Single Phase, Bi-Phase, or Three Phase power, supporting a voltage range from 85 to 460 VAC without requiring any manual adjustments. True three-phase load balancing can be achieved directly by the amplifier, simplifying power distribution.
Multiple Channels and Input Options : It offers eight fully processable channels and supports inputs from both analog and digital sources, including AES3 and two redundant Dante™ streams. This flexibility allows for easy channel mixing and routing , aided by a revolutionary low-latency DSP, ensuring maximum freedom in sound shaping and speaker management.
Seamless Integration : The X8 supports both 100 Mbps and Gigabit Ethernet , making it easy to integrate into existing network infrastructures. It is fully compatible with ArmoníaPlus™ , allowing control and monitoring via a computer or mobile devices such as smartphones and tablets.
In summary, the Powersoft X8 amplifier offers a versatile, powerful, and easy-to-manage solution for professional audio setups, with advanced power supply capabilities, channel routing flexibility, and seamless network integration.
specifications of the Powersoft X8 8-Channel High-Performance Amplifier :
Channel Handling:
Output Channels : 8 mono (bridgeable per channel pair)

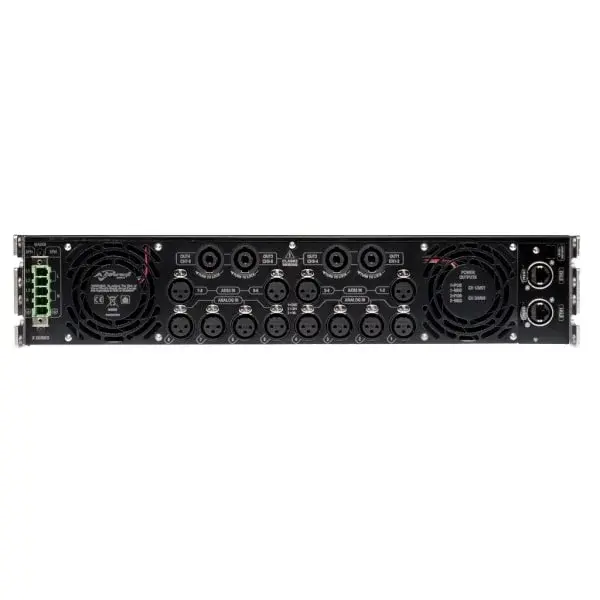

Input Channels :
Analog : 8 (XLR)
AES3 : 8 (4 XLR)
Dante™ : 16 (2 RJ45) (Dante version only)
Audio:
Gain : 17 dB - 47 dB (adjustable in 0.1 dB increments)
Default Gain : 32 dB
Output Noise : A-weighted < -70.0 dBV (Analog to Analog/Digital to Analog)
Dynamic Range : 114.3 dB (A-weighted)
Damping Factor : >5000 @ 8 Ω (20Hz - 500Hz)
Slew Rate : >50 V/µs (input filter bypassed)
Frequency Response : 5 Hz - 30 kHz (-3 dB)
Crosstalk : -70 dB @ 1 kHz
THD+N : < 0.5% (typically < 0.01%)
DIM : < 0.5% (typically < 0.01%)
Input Impedance : 20 kΩ Balanced
Input Acceptance : +27 dBu
Output Stage:
Max Output Power :
@ 8 Ω : 1600 W
@ 4 Ω : 3000 W
@ 2.7 Ω : 4000 W
@ 2 Ω : 5200 W
Bridged @ 8 Ω : 6000 W
Bridged @ 4 Ω : 10400 W
Peak Total Output Power : 40,000 W (all channels driven)
Max Unclipped Output Voltage : 175 Vpeak
Max Output Current : 130 Apeak
AC Mains Power:
Single Phase :
Nominal Voltage: 100 - 240 V @ 50/60Hz
Operating Range: 90 - 264 V from DC to 200 Hz
Power Factor: >0.9 (1/8 Maximum Output Power)
Current Draw:
32 Arms @ 100V
18 Arms @ 240V
Suggested Circuit Breaker: C32
Three Phase :
Nominal Voltage: 173Y / 100 - 416Y / 240 V
Current Draw per Phase:
12 Arms @ 173Y
6 Arms @ 416Y
Suggested Circuit Breaker: C16 (per phase)
Idle Consumption : < 200 W
Max Consumption : < 5000 W
DSP:
AD Converters : Dual 24-bit 48 kHz Tandem® architecture with 129 dBA dynamic range
DA Converters : Dual 24-bit 48 kHz Tandem® architecture with 121 dBA dynamic range
Sample Rate Converter : 24-bit @ 44.1 kHz to 192 kHz (140 dB dynamic range, 0.0001% THD+N)
Internal Precision : 40-bit floating point
Delay :
Up to 2 seconds on the input section
Up to 100 ms per output for time alignment
Equalizer:
Filter Types : Raised-cosine, FIR, IIR, peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass
Crossover Options:
Linear Phase (FIR), Hybrid (FIR-IIR), Butterworth, Linkwitz-Riley, Bessel (6 dB/oct to 48 dB/oct)
Limiters:
Types : TruePower™, RMS voltage, RMS current, Peak Limiter
Damping Control:
Active DampingControl™
Thermal & Cooling:
Operating Temperature : 0° - 35°C (32° - 95°F)
Cooling : Variable speed fan, temperature-controlled
Fan Noise : 40 dBA SPL @ 1/8 Maximum Output Power (1m)
Thermal Dissipation:
115V Single Phase :
2117 BTU/h (1/8 Maximum Output Power @ 8Ω)
3892 BTU/h (1/4 Maximum Output Power @ 8Ω)
230V Single Phase :
1946 BTU/h (1/8 Maximum Output Power @ 8Ω)
2875 BTU/h (1/4 Maximum Output Power @ 8Ω)
Construction:
Dimensions : 483 mm x 89 mm x 495 mm (19.0 in x 3.5 in x 19.5 in)
Weight : 24 kg (52.9 lb)
These specifications highlight the Powersoft X8's powerful, flexible, and highly efficient design, suitable for demanding professional audio applications.
